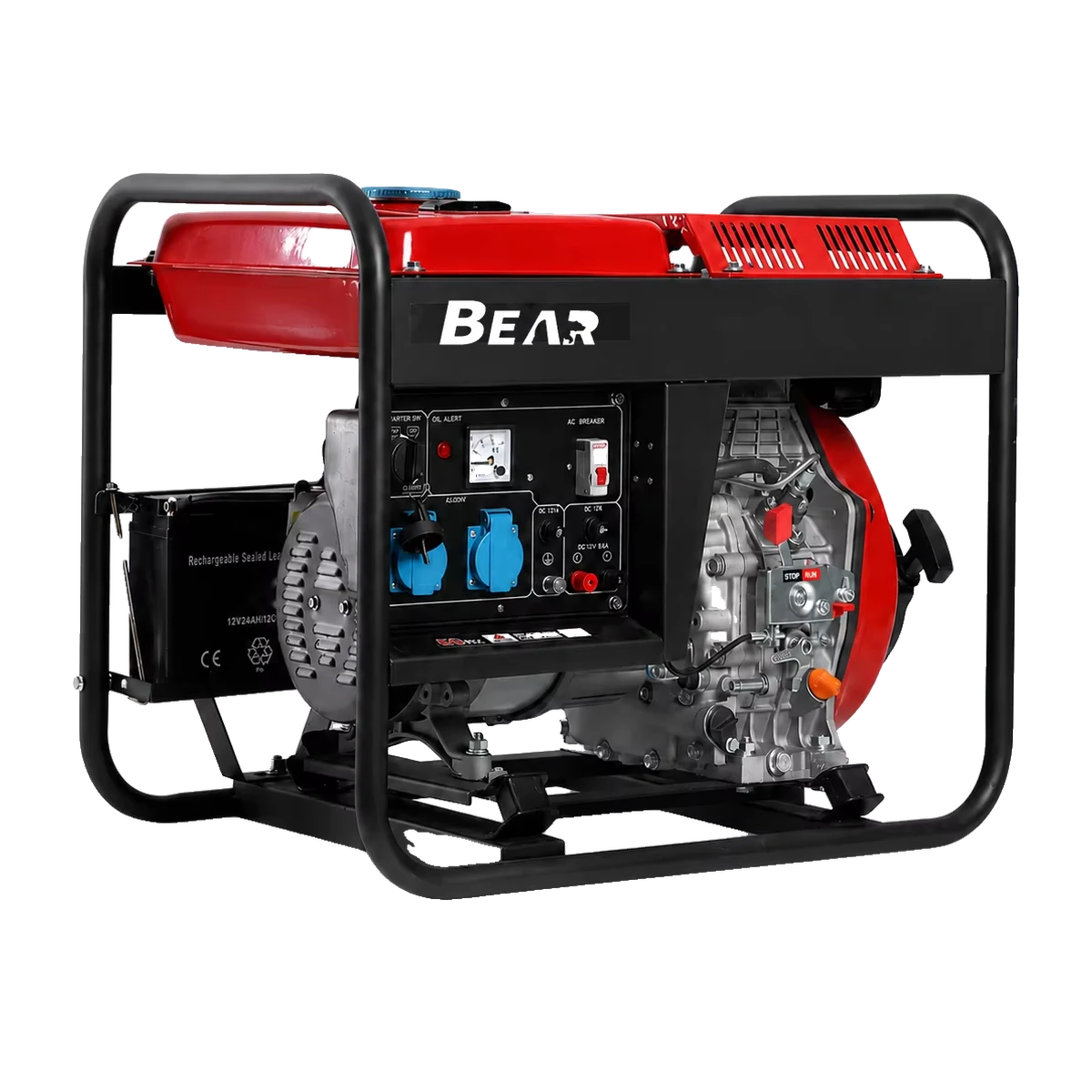

DH2800 – DH10500 Open-Frame Diesel Generators
Six open-frame diesel models, DH2800 to DH10500, compared by rated output, engine and electrical configuration.
- Models
- DH2800 – DH10500 (6 models)
- Rated output
- 1.8 – 8 kW
- Maximum output
- 2 – 9 kW
- Rated AC voltage
- 110 / 220 / 380 V
- Starting system
- Electric start
Overview
This DH range spans 1.8–8 kW rated output and 2–9 kW maximum output. Use the individual model columns to select an output, then pair it with the required voltage and frequency; electric starting is listed across the range.
Specifications
Technical data for the six open-frame diesel models from the BEAR product catalogue. Values that the catalogue lists once for several models are shown as merged cells; the quotation fixes frequency, phase, socket standard and optional equipment for your order.
| Model | DH2800 | DH3800 | DH6500 | DH8500 | DH9500 | DH10500 |
|---|---|---|---|---|---|---|
| Maximum output | 2 kW | 3 kW | 5.5 kW | 6.5 kW | 8 kW | 9 kW |
| Rated output | 1.8 kW | 2.8 kW | 5 kW | 6 kW | 7 kW | 8 kW |
| Rated AC voltage | 110 / 220 / 380 V | |||||
| Frequency | 50 / 60 Hz | |||||
| Engine speed | 3000 rpm | |||||
| Power factor | 1.0 | |||||
| DC output | 12 V / 8.3 A | |||||
| Alternator type | Self-excited, 2-pole, single alternator | |||||
| Starting system | Electric start | |||||
| Noise level (dB at 7 m) | 80–85 dB | |||||
| Fuel tank capacity | 12.5 L | 15 L | ||||
| Continuous running time | 17 h | 15 h | 14 h | 13 h | 12 h | 11 h |
| Engine model | 173F | 178F | 188F | 190F | 192F | 195F |
| Engine type | Single-cylinder, vertical, 4-stroke, air-cooled diesel engine | |||||
| Displacement | 246 cc | 256 cc | 418 cc | 490 cc | 530 cc | 456 cc |
| Bore × stroke | 73 × 59 mm | 78 × 62 mm | 88 × 72 mm | 92 × 75 mm | 95 × 75 mm | 90 × 75 mm |
| Fuel consumption rate | 295 g/kWh | |||||
| Fuel type | 0# or −10# light diesel oil | |||||
| Lubrication oil volume | 0.75 L | 1.1 L | 1.65 L | |||
| Combustion system | Direct injection | |||||
| Standard features | Voltmeter, AC output socket, AC circuit breaker, oil alert | |||||
| Optional features | Four side wheels, digital meter, ATS remote control | |||||
| Packing dimensions (L × W × H) | 690 × 490 × 560 mm | 740 × 620 × 710 mm | — | 740 × 620 × 710 mm | ||
| Net weight | 70 kg | 71 kg | 105 kg | 108 kg | 110 kg | 115 kg |
| Gross weight | 72 kg | 73 kg | 110 kg | 113 kg | 115 kg | 120 kg |
| 20' container loading | 123 pcs | 102 pcs | ||||
| 40' HQ container loading | 332 pcs | 204 pcs | ||||
Values are taken from the BEAR product catalogue for DH2800, DH3800, DH6500, DH8500, DH9500, DH10500.
Sound figures are values listed in the model source. Compare the same load, measurement method, distance and environment; request the complete test conditions when they are not stated here. Fuel-consumption and runtime figures are values listed in the model source. Request the load point, fuel or tank basis and test conditions for a like-for-like comparison; actual consumption and operating time depend on the operating conditions.
Application ideas

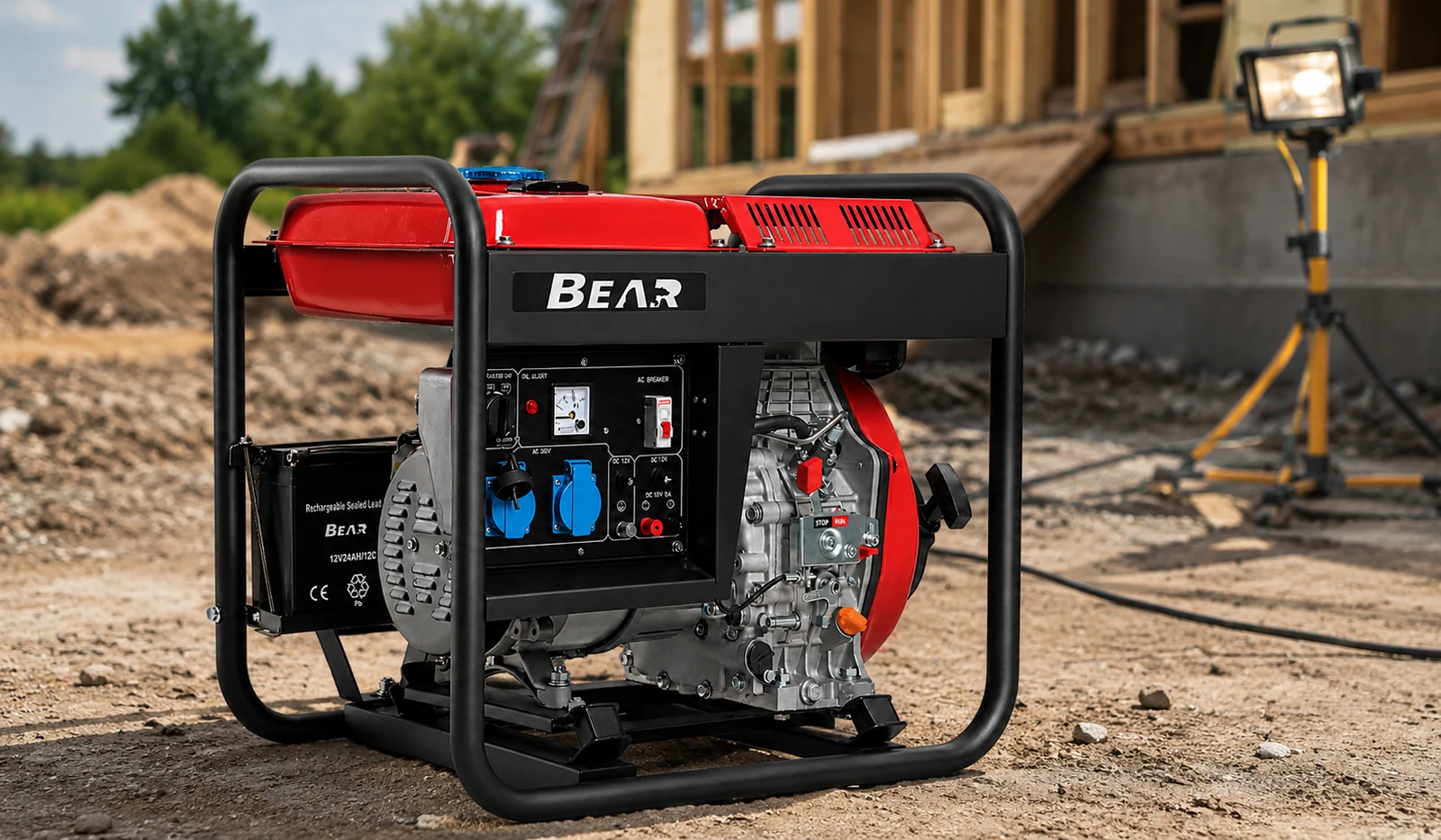

Outdoor site-planning discussions
Use these settings to discuss connected loads, duty cycle, stable placement, working clearances and the destination electrical standard.
Operate outdoors with clear ventilation, safe exhaust direction, stable grounding, weather protection and the clearances specified for the final configuration.
Questions about DH2800 – DH10500 Open-Frame Diesel Generators
Short answers for comparing this configuration before quotation.
Send your requirementsHow do I turn the range comparison into an order?
Name one DH model from the comparison and record its rated output, voltage, frequency and required outlets. Send that selection with the load list and destination country.
Can I compare the range using the largest output number?
Use the rated-output row for the selected model and keep maximum output separate. The 1.8–8 kW range describes several models, so the final quotation needs a specific model column.
