DG12000E3-3D Open-Frame Diesel Generator
Open-frame diesel generator with electric start, single- or three-phase options, and optional caster wheels and ATS.
- Rated output
- 9 kW
- Maximum output
- 9.5 kW
- Phase options
- Single / three
- Starting
- Electric
Overview
DG12000E3-3D lists 9 kW rated output and 9.5 kW maximum output at 50 Hz. Its 25 L tank, 740 × 620 × 710 mm machine size and 219 kg machine weight belong in the same comparison as the phase, starting arrangement and movement requirements.
Specifications
DG12000E3-3D product specifications
| Specification | DG12000E3-3D |
|---|---|
| Model | DG12000E3-3D |
| Fuel | Diesel |
| Structure | Open frame |
| Peak power | 9.5 kW |
| Rated power | 9 kW |
| Phase number | Single-phase / three-phase options |
| Frequency | 50 Hz |
| Rotational speed | 3000 RPM |
| Startup method | Electric start |
| Fuel tank capacity | 25 L |
| Machine size | 740 × 620 × 710 mm |
| Machine weight | 219 kg |
| Optional equipment | Caster and ATS |
DG12000E3-3D values come from the product documents and figures confirmed for the quotation configuration. Single-phase and three-phase configurations are available. Caster and ATS are optional equipment.
Walk around the product layout
This short video shows the fuel-tank, control-panel, electric-start, engine-side and wheel-frame layout from multiple angles.
- Upper fuel-tank and open-frame arrangement

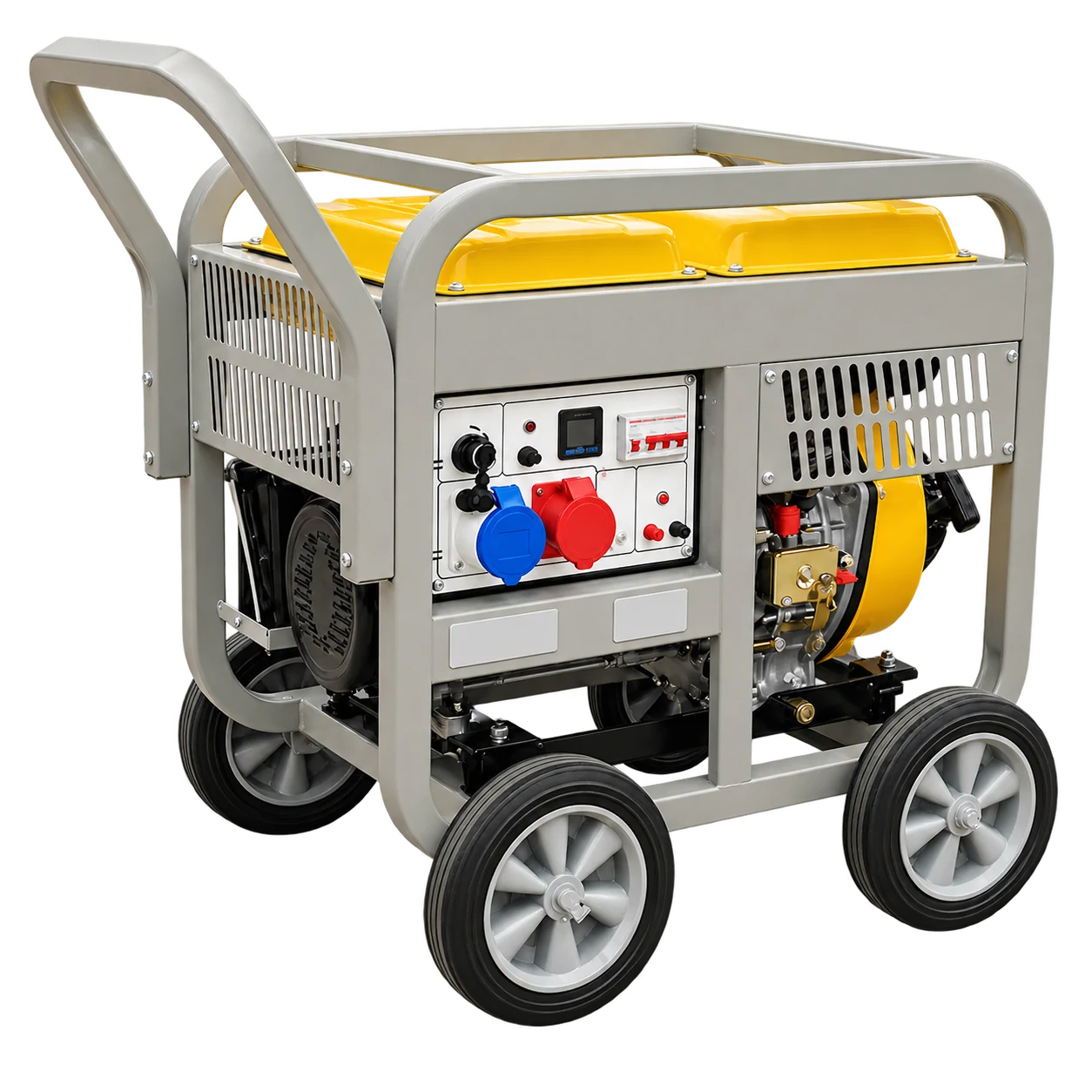

- Control-panel and electric-start positions

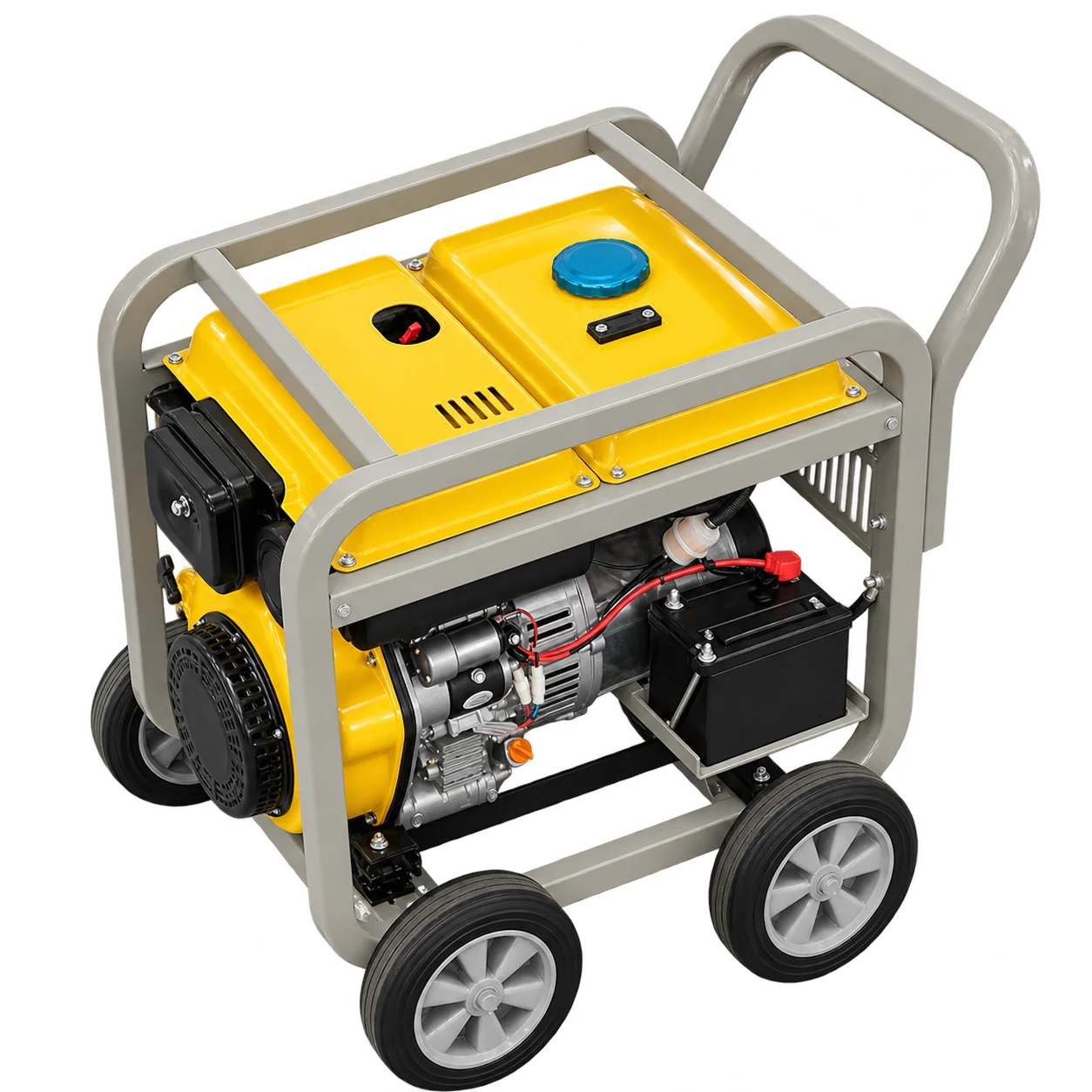

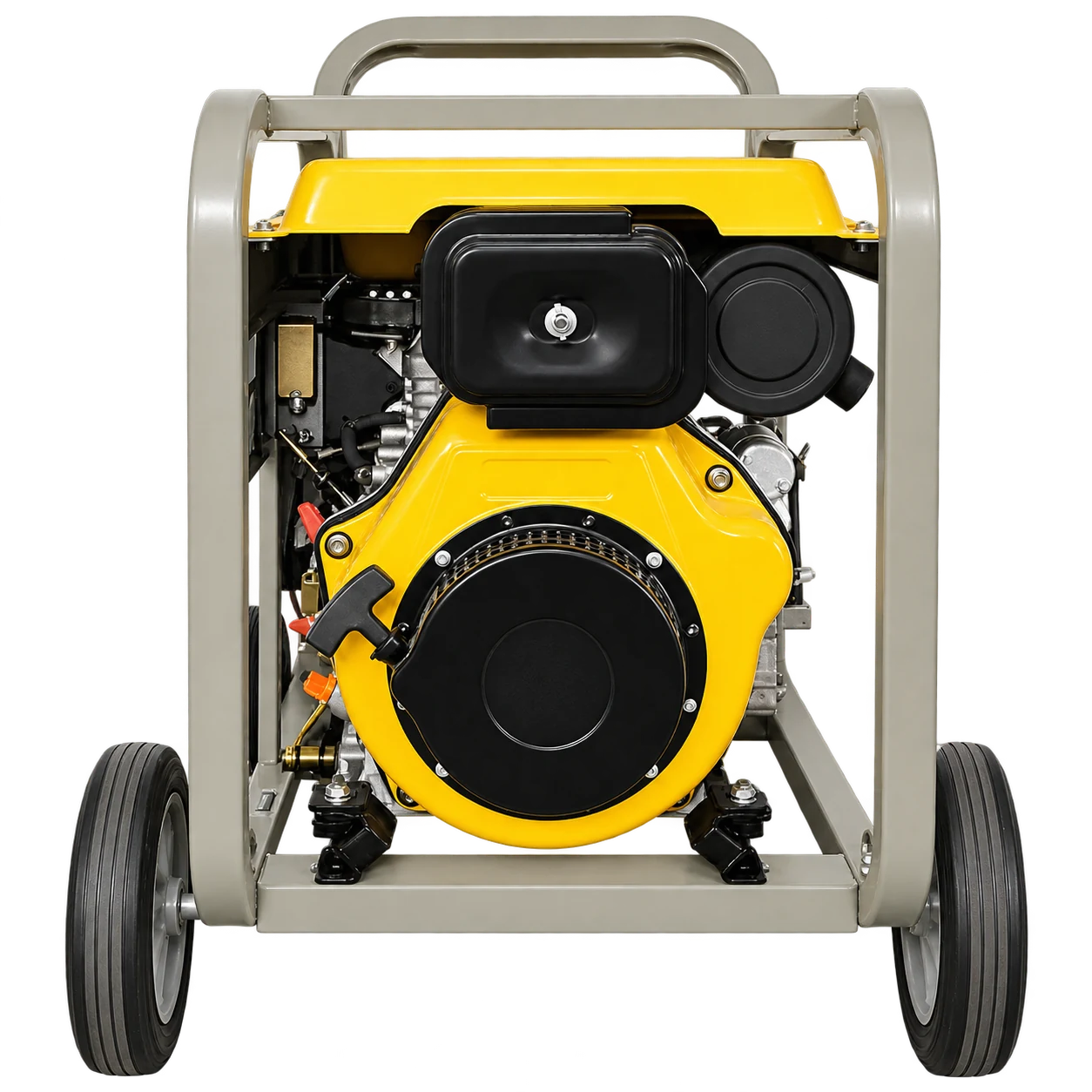

- Engine-side access and four-wheel frame
Visible components at a glance
The A–K markers identify the visible operating and structural positions shown in the image.
- A
- Push handle
- B
- Fuel tank cap
- C
- Fuel tank
- D
- Digital display
- E
- Electric key switch
- F
- AC output sockets
- G
- DC output terminals
- H
- Circuit breaker
- I
- Diesel engine
- J
- Wheels
- K
- Steel frame
Review product and accessory options
Use this overview to identify the product format and discuss which mobility, starting and connection options belong in the quoted configuration.
- Confirm the exact control and outlet configuration for the destination market
- List caster, ATS and other required options separately in the inquiry
- Check the final inclusion list against the quotation before ordering
Application ideas

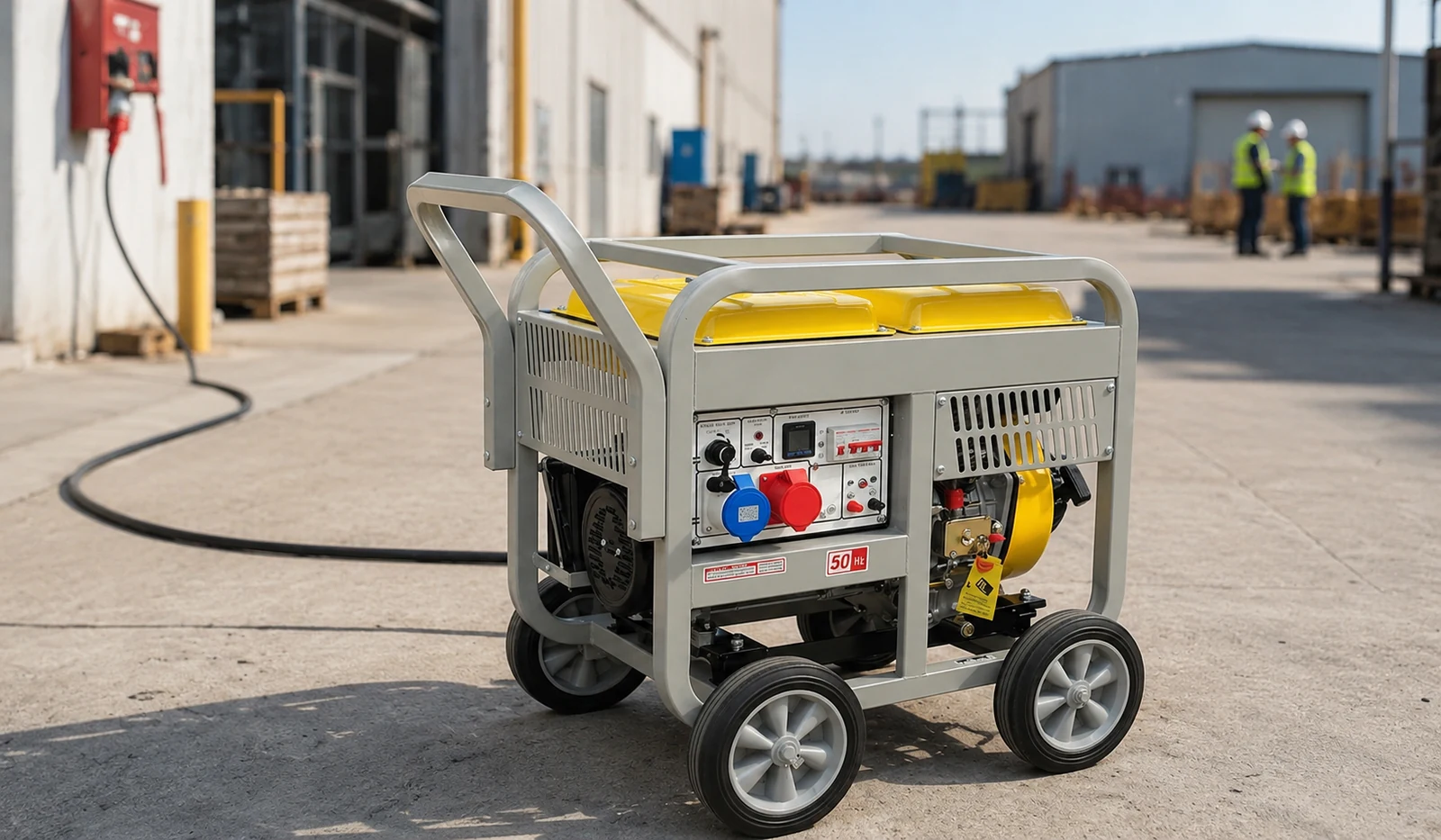

Power for active worksites
For construction, maintenance and temporary-power projects, size connected equipment against the 9 kW rated output and motor-starting demand.
Operate outdoors with clear ventilation, stable grounding, safe exhaust direction, weather protection and required working clearances.
Questions about DG12000E3-3D
Short answers for comparing this configuration before quotation.
Send your requirementsAre the phase options interchangeable in one order?
Specify the required single-phase or three-phase configuration when requesting DG12000E3-3D. Check the selected phase, voltage and outlet arrangement on the quotation and supplied nameplate.
Are caster wheels and ATS part of the base configuration?
Caster wheels and ATS are listed as optional equipment. Name each required option separately so it is included in the order scope.
