Generating or welding duty
Separate the connected electrical loads from welding current, process and duty-cycle requirements.
Product line · buyer page
Diesel silent generator range
Compare enclosed diesel configurations by electrical output, cabinet access and mobility, with welding duty specified separately where required.
Enclosed diesel units for project sitesDiesel generator-welder included
Category directory
Models in this category
Diesel silent models
Open a model; final configuration is confirmed in the quotation.

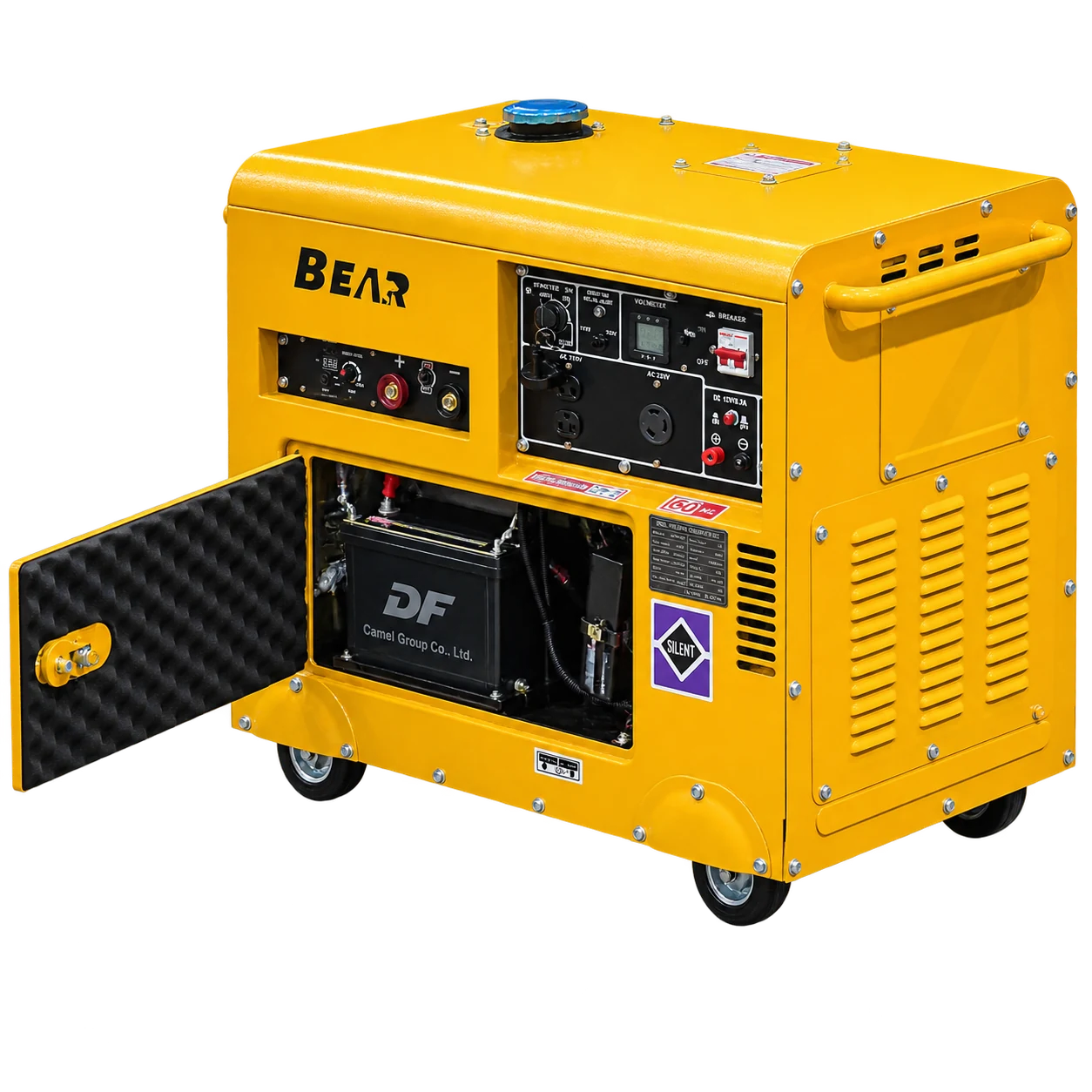

Enclosed Diesel Welding Generator Configuration
- Fuel
- Diesel
- Product type
- Welding generator
- Enclosure
- Enclosed body

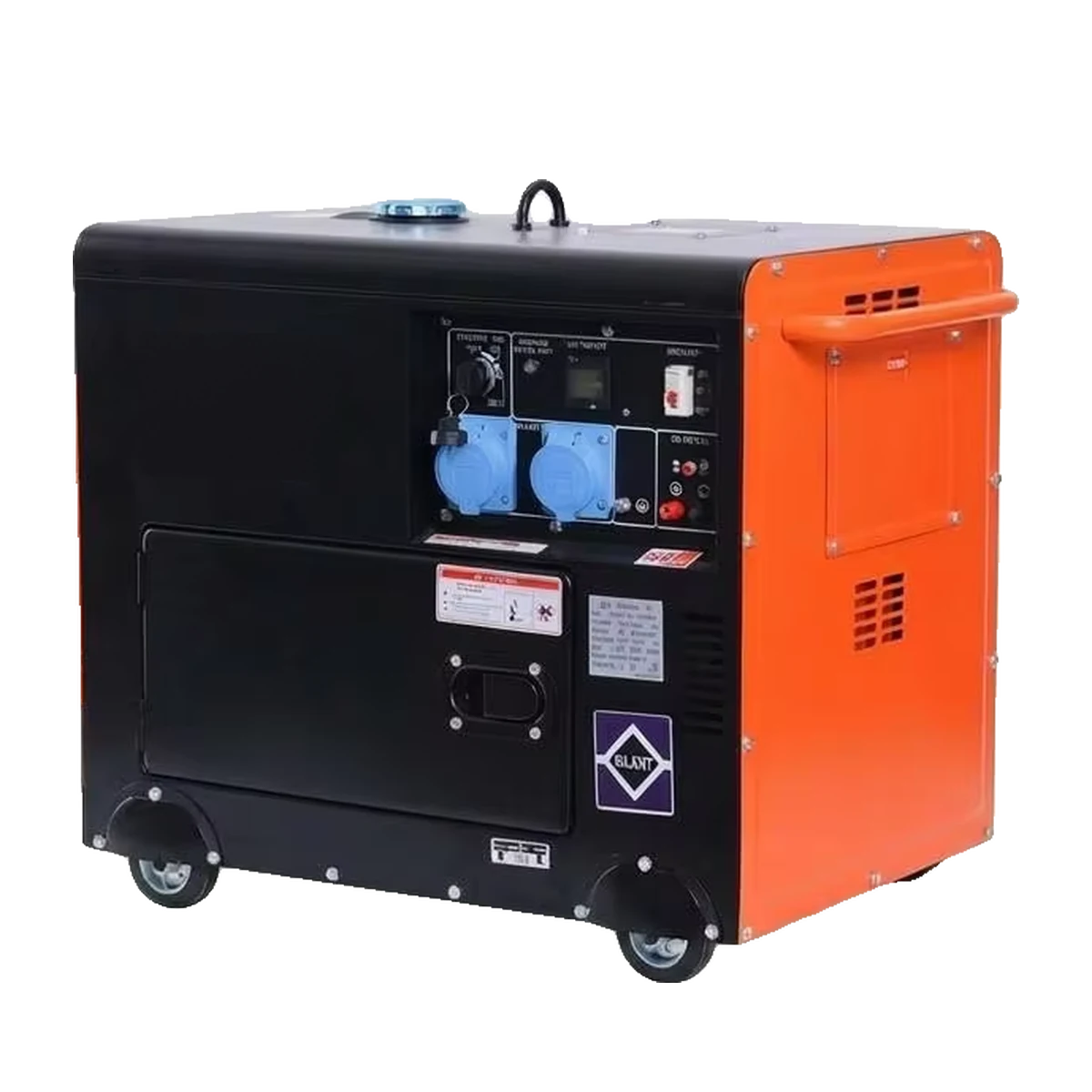

BEAR Enclosed Diesel Generator
- Fuel
- Diesel
- Housing
- Enclosed cabinet
- Mobility
- Wheeled base

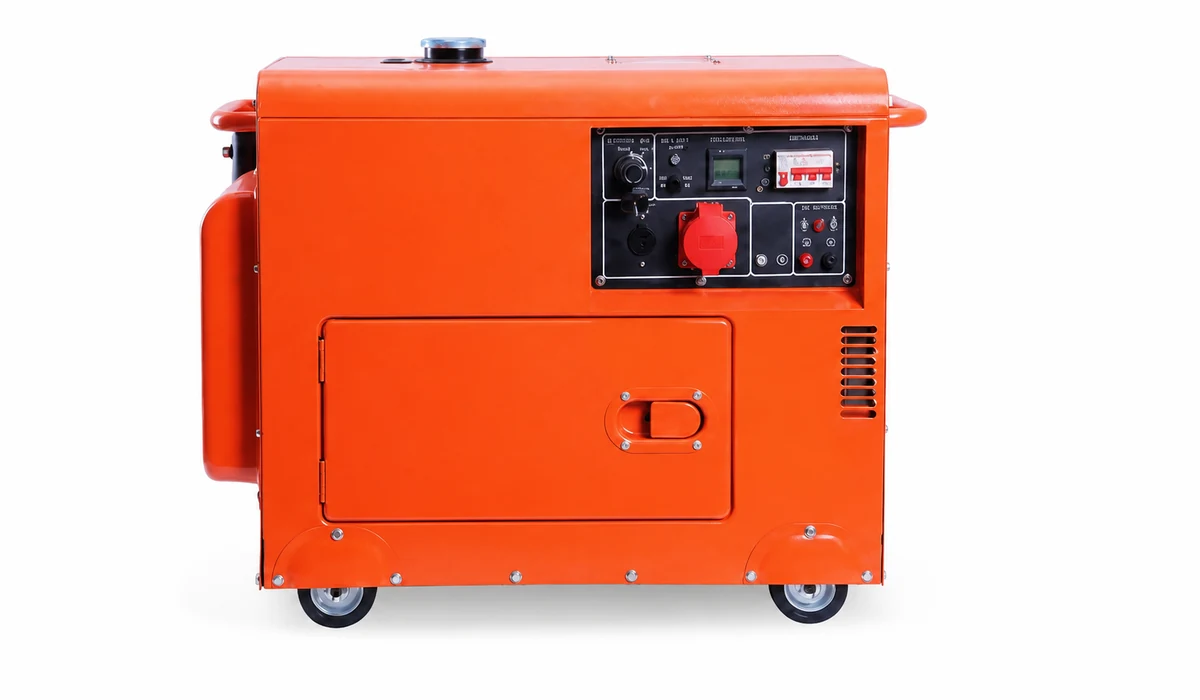

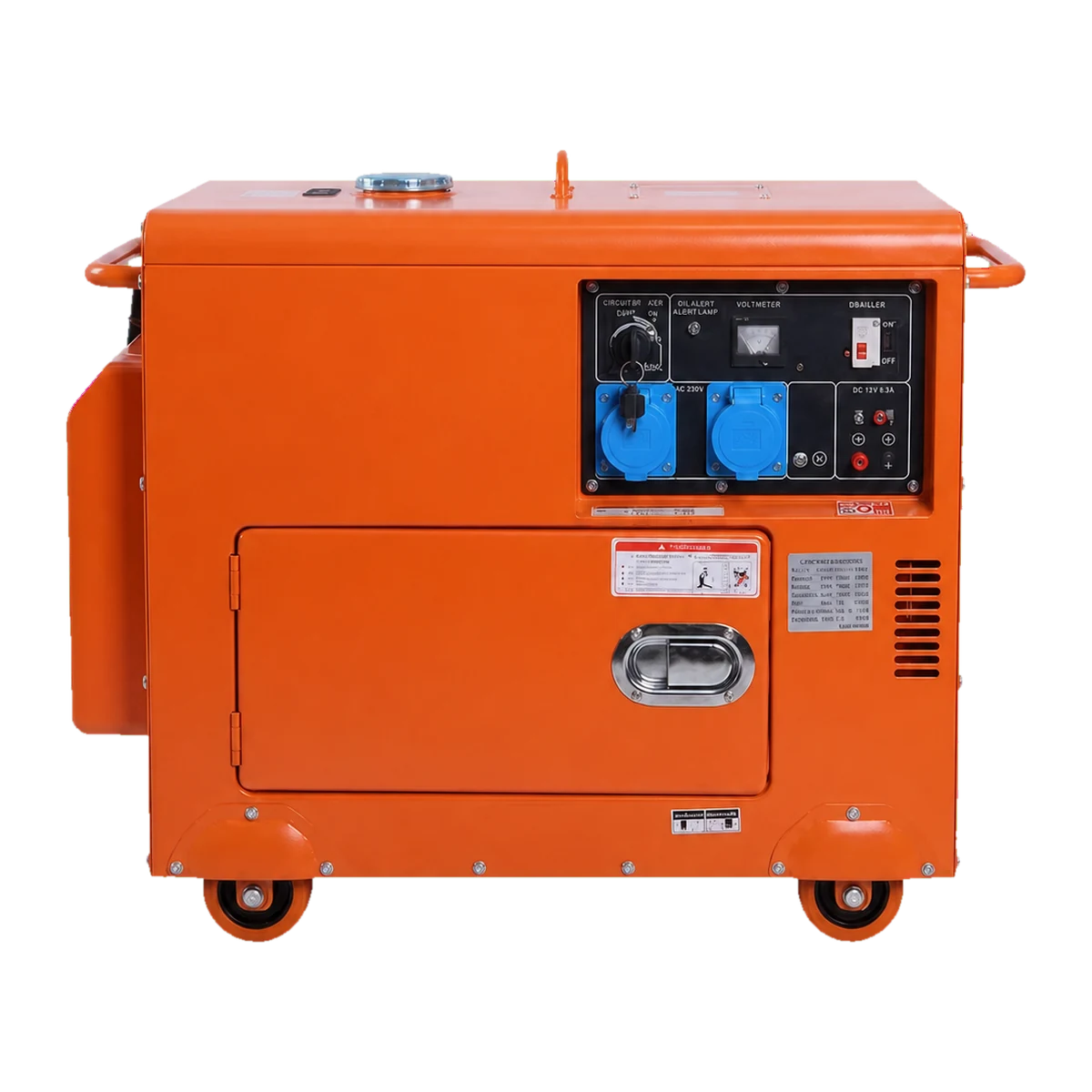

BEAR Orange Enclosed Diesel Generator
- Brand
- BEAR
- Housing
- Enclosed cabinet
- Mobility
- Wheels · upper handles

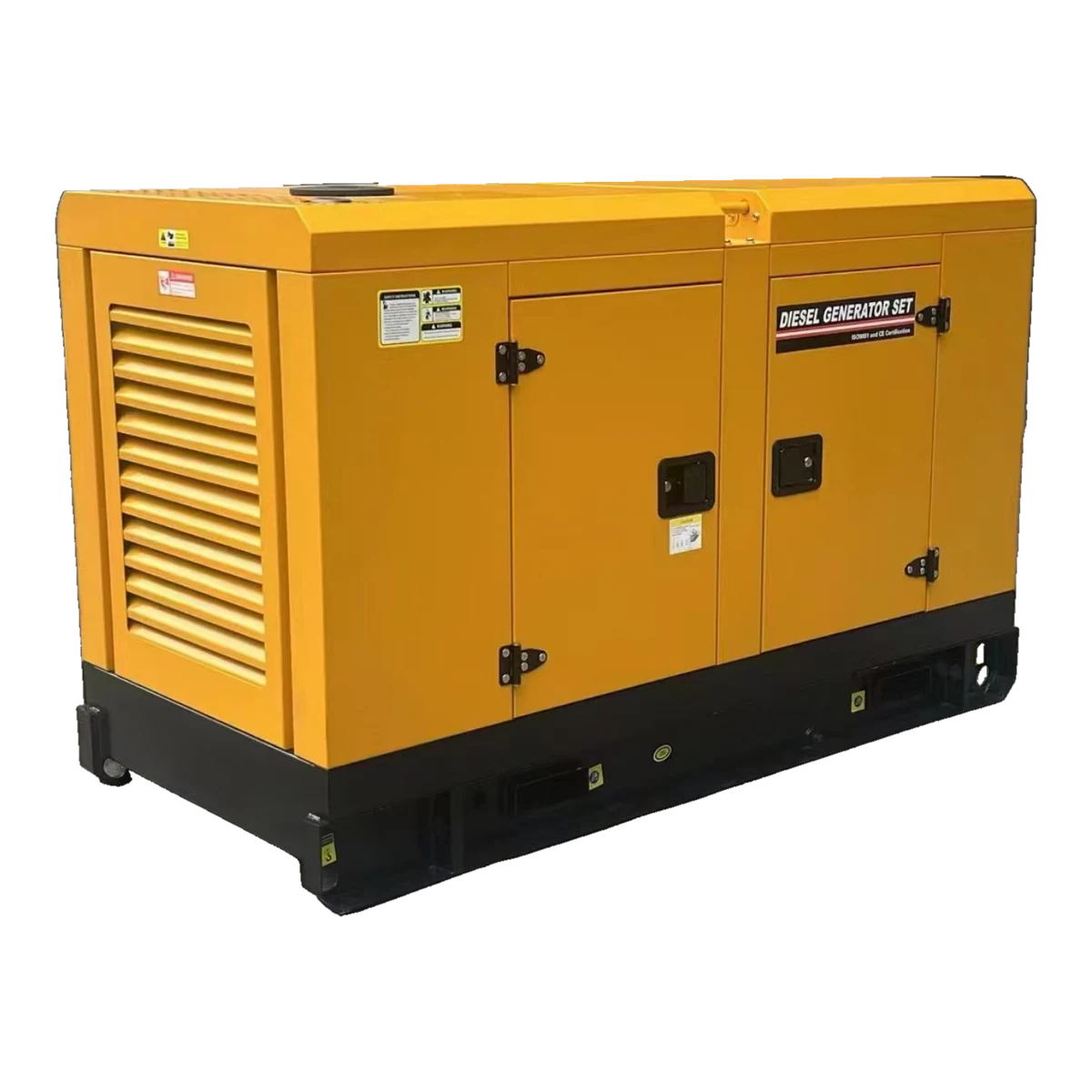

Yellow Enclosed Diesel Generator
- Format
- Enclosed diesel generator
- Housing
- Yellow cabinet
- Access
- Side service doors
DH22000S Enclosed Diesel Generator
- Rated output
- 15 / 16 kW
- Maximum output
- 15.5 / 16.5 kW
- Phase
- Single-phase or three-phase
Video review
Enclosed generator workshop walkthrough
A vertical walkthrough shows rows of enclosed generator housings and visible control panels in a workshop environment.
The footage supports only the visible workshop setting, enclosed housings and control-panel positions. It does not establish BEAR ownership, diesel fuel, an acoustic result, a model, output, electrical configuration, factory capacity, inventory or public rights for the visible C POWER / PP9500S marking.
Open the dedicated video page →Published specifications
Published values for DH22000S
Published values only; “Per quotation” is confirmed from the model datasheet and nameplate for your order.
| Specification | DH22000S |
|---|---|
| Rated output | 15 / 16 kW |
| Maximum output | 15.5 / 16.5 kW |
| Phase | Single-phase or three-phase |
| Frequency | 50 / 60 Hz |
| Starting system | Electric start |
| Engine model | 2V95 |
| Engine speed | 3000 rpm |
| Fuel tank capacity | 30 L |
| Continuous running time | 8 / 7.5 h |
| Noise level (dB at 7 m) | 80–85 dB |
| Packing dimensions (L × W × H) | 935 × 675 × 975 mm |
| Gross weight | 240 kg |
Choose and verify
Choose a diesel cabinet around the work it must perform
Cabinet and movement route
Match front controls, side doors, wheels and handles to the delivery route and service space.
Site acoustic requirement
Send the sound limit with measurement position and operating condition for a comparable model-level answer.
Diesel silent offer comparison
| Decision field | Compare | Confirm before order |
|---|---|---|
| Sound data | Value, unit, distance, load and test environment | Test report for the exact model |
| Generating duty | Rated output, maximum output, phase and operating pattern | Model datasheet and nameplate |
| Welding function | Process, current range and duty cycle where applicable | Separate model-specific welding data |
| Enclosure and service | Airflow, doors, controls, access and maintenance clearances | Production layout and manual |
| Order package | Mobility, accessories, documentation, branding and packing | Written inclusion list and approved sample |
Visual range review
Inspect the housings, controls and working context
Compare visible construction and service access. Exact specifications follow the linked model record.
- 01Load and operating pattern
- 02Required sound value and test basis
- 03Voltage, frequency and phase
- 04Generator-only or generator-welder function
01What sound information should a diesel silent supplier provide?
Ask for the exact model, measured value, unit, distance, load and test environment. Without a common basis, two published numbers may not be comparable.
02Does a larger enclosure guarantee a quieter generator?
No. Cabinet size alone does not prove acoustic performance. Internal design, airflow, exhaust, load and measurement conditions all affect the result.
03How should a diesel silent generator-welder be evaluated?
Evaluate generating output, welding output, duty cycle, controls and accessories separately, then review the enclosure and sound evidence for the same exact model.
Use a buyer guide or compare a neighbouring range

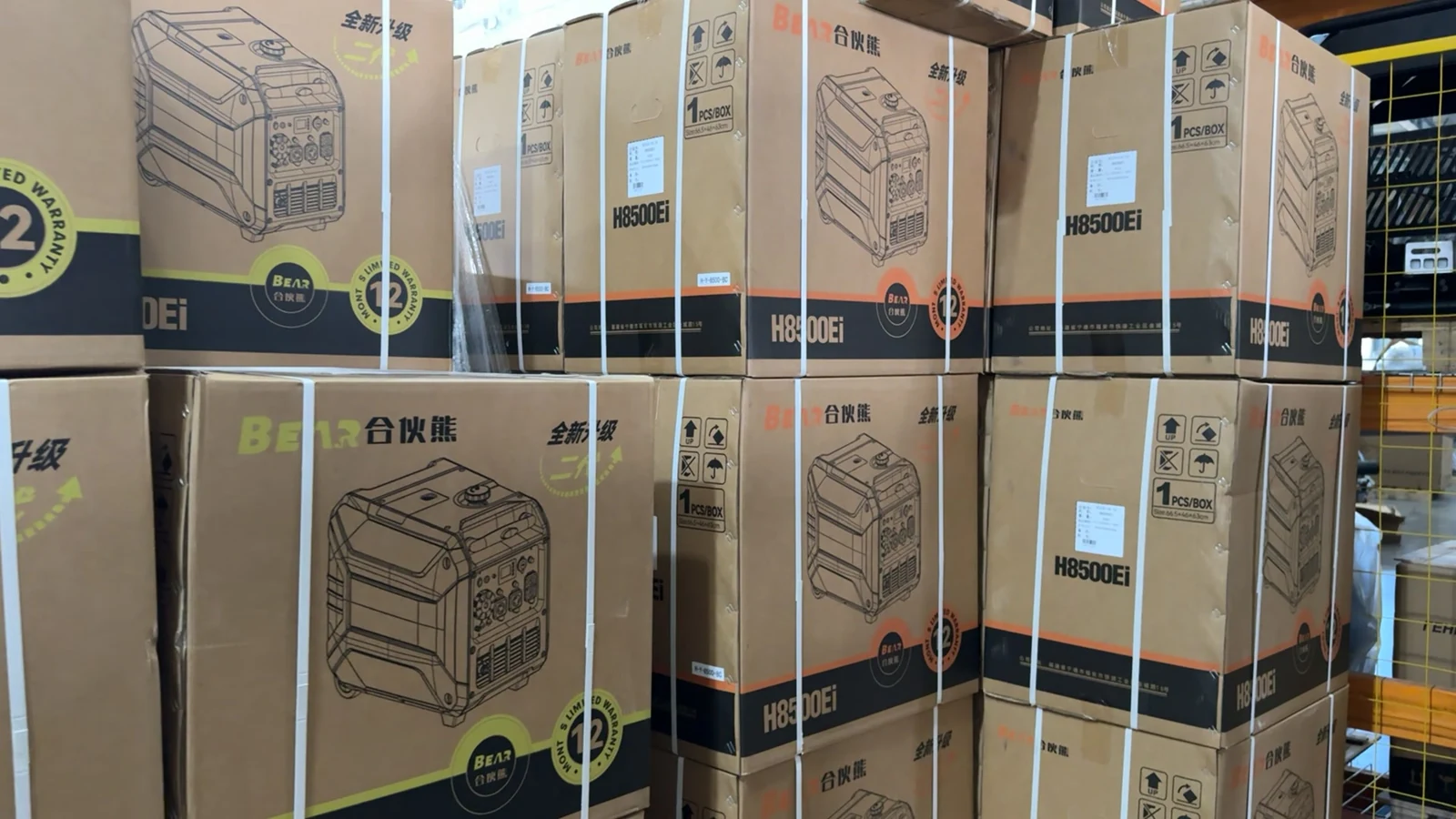

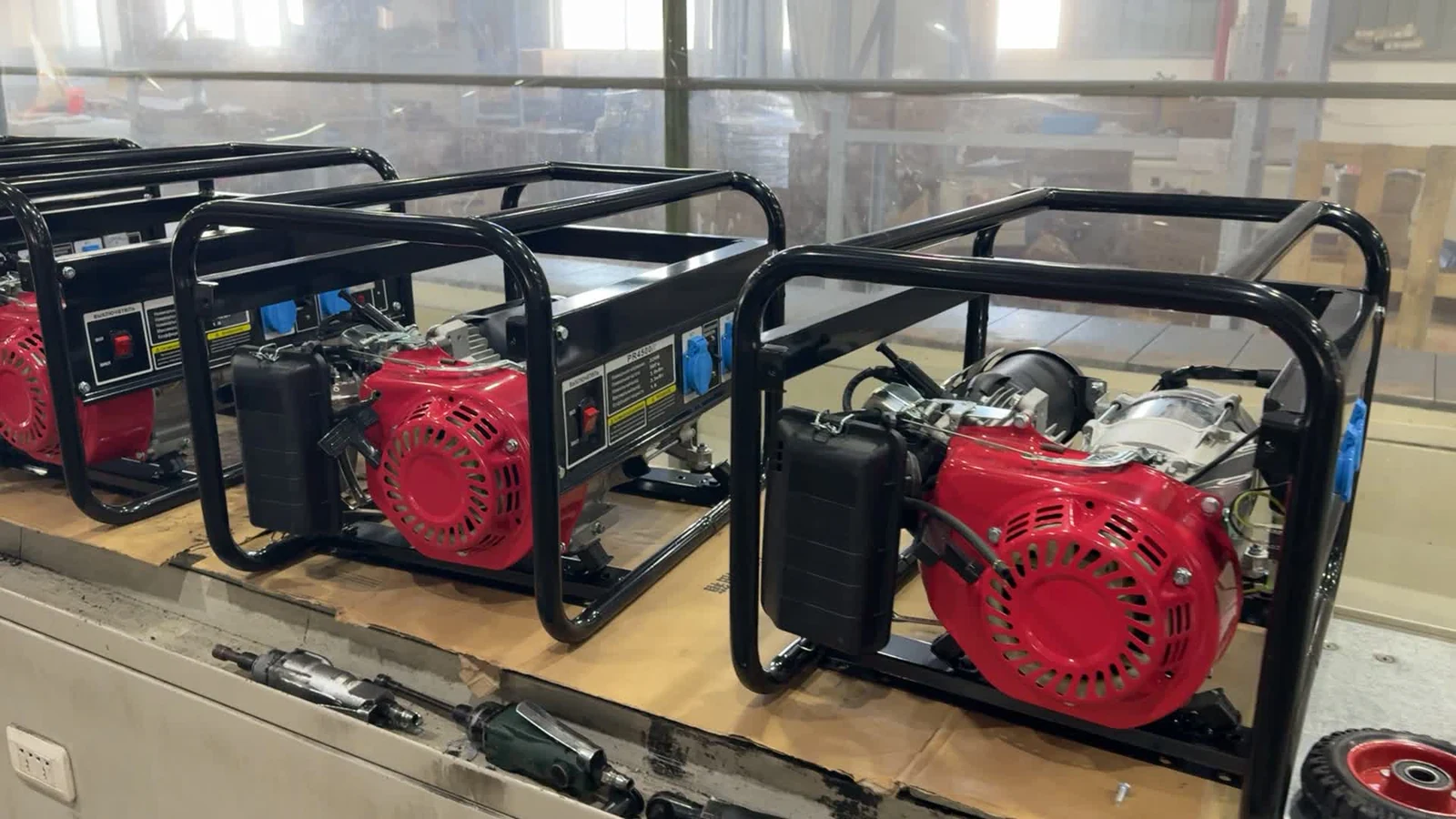

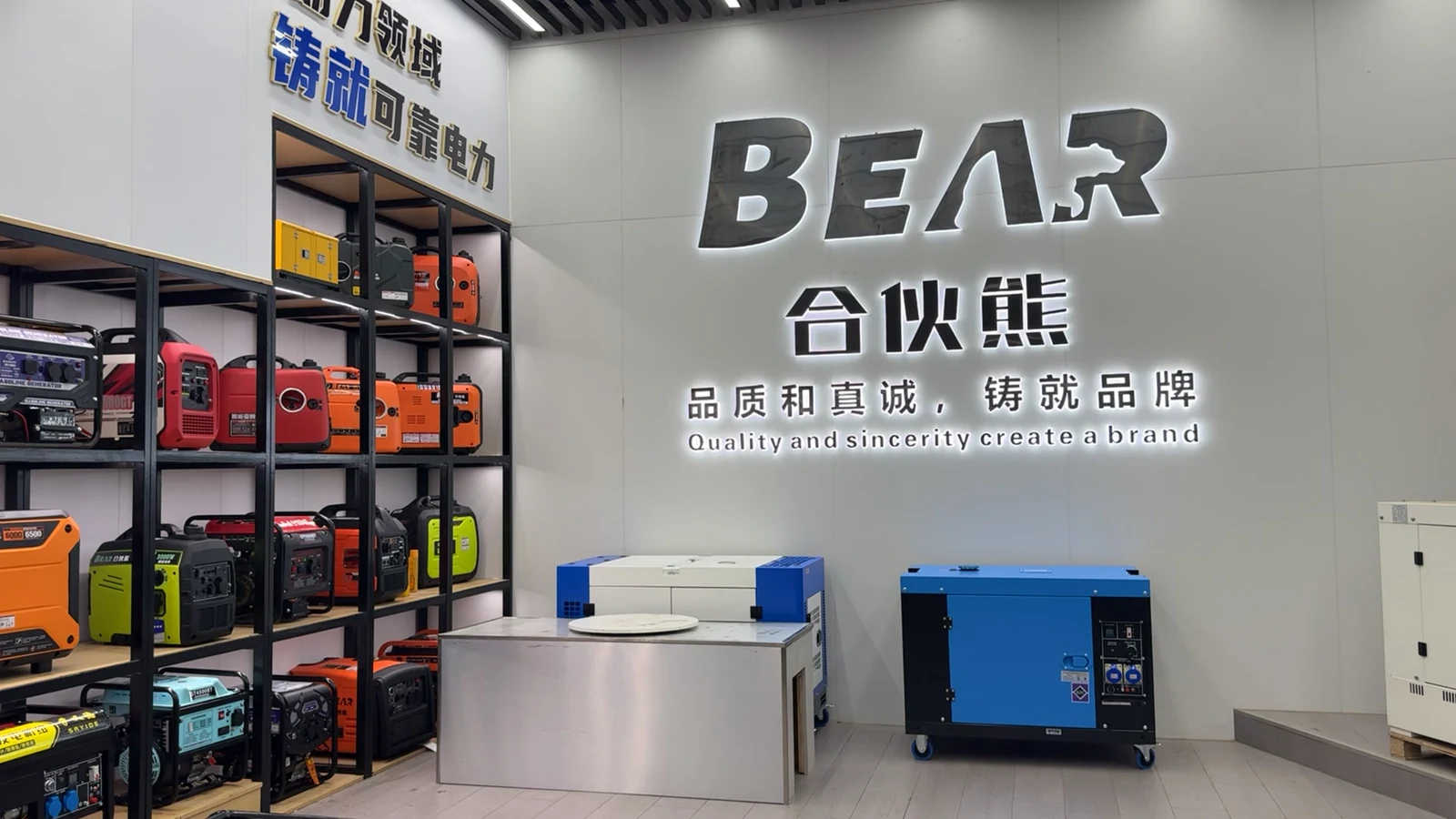

Inside BEAR
From showroom to packing preparation.
A quick view of the product range, assembly work and prepared packaging.
