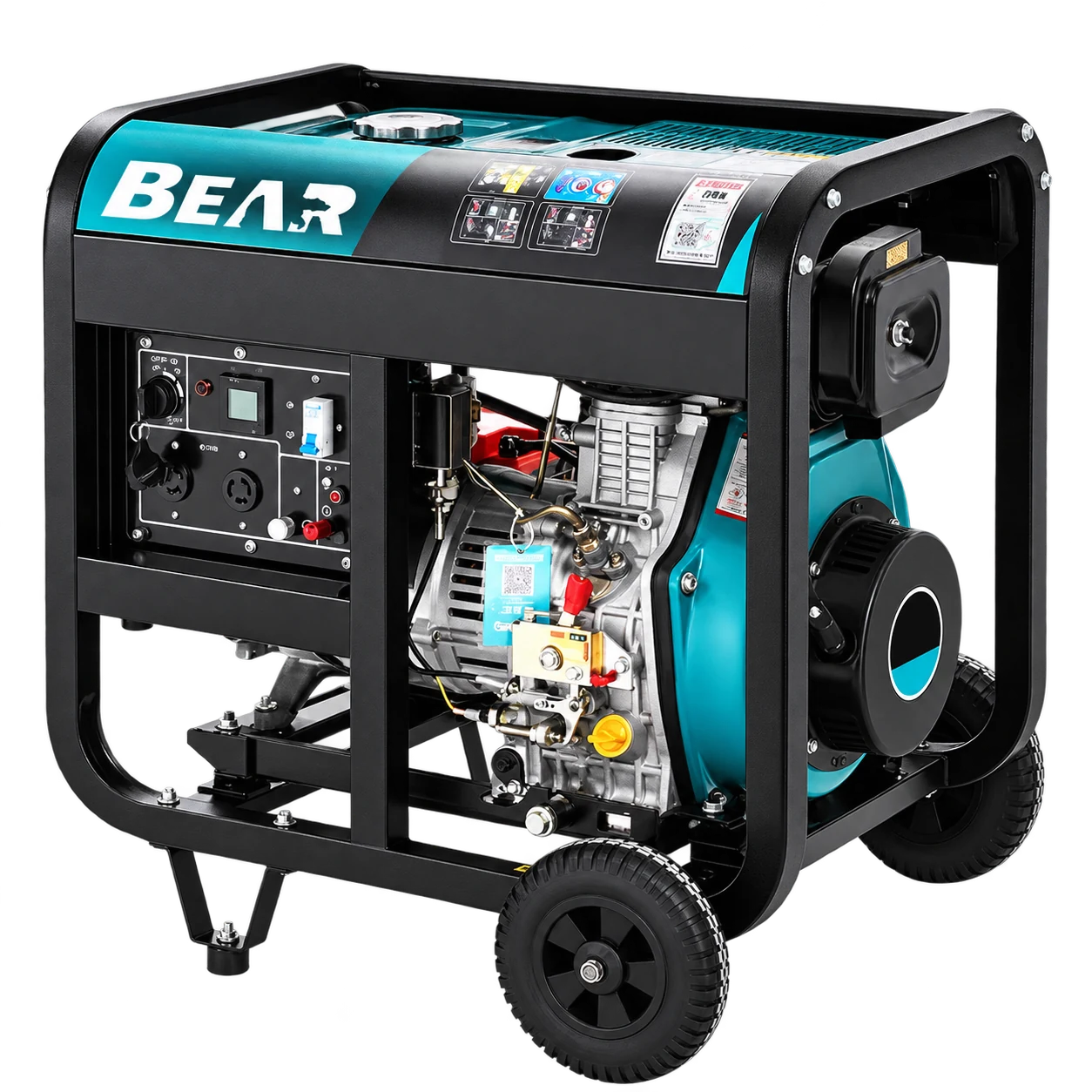

DH11000E – DH12000E+ Open-Frame Diesel Generators
Two open-frame diesel models with 1100F and 1103F engines.
- Models
- DH11000E, DH12000E+ (2 models)
- Rated output
- 8 – 9.5 kW
- Maximum output
- 8.5 – 10 kW
- Rated AC voltage
- 110 / 220 / 380 V
- Starting system
- Electric start
Overview
DH11000E uses the 1100F engine, while DH12000E+ uses the 1103F. Both are electric-start open-frame diesel generators with a 30 L tank; select the electrical configuration and optional equipment for your order.
Specifications
| Model | DH11000E | DH12000E+ |
|---|---|---|
| Maximum output | 8.5 kW | 10 kW |
| Rated output | 8 kW | 9.5 kW |
| Rated AC voltage | 110 / 220 / 380 V | |
| Phase | Single-phase or three-phase | |
| Frequency | 50 / 60 Hz | |
| Engine speed | 3000 rpm | |
| Power factor | 1.0 | |
| DC output | 12 V / 8.3 A | |
| Alternator type | Self-excited, 2-pole, single alternator | |
| Starting system | Electric start | |
| Noise level (dB at 7 m) | 80–85 dB | |
| Fuel tank capacity | 30 L | |
| Continuous running time | 10 h | |
| Engine model | 1100F | 1103F |
| Engine type | Single-cylinder, vertical, 4-stroke, air-cooled diesel engine | |
| Displacement | 660 cc | 762 cc |
| Bore × stroke | 100 × 84 mm | 103 × 88 mm |
| Fuel consumption rate | 295 g/kWh | |
| Fuel type | 0# or −10# light diesel oil | |
| Lubrication oil volume | 2.5 L | |
| Combustion system | Direct injection | |
| Standard features | Voltmeter, AC output socket, AC circuit breaker, oil alert | |
| Optional features | Four side wheels, digital meter, ATS remote control | |
| Net weight | 145 kg | 150 kg |
| Gross weight | 150 kg | 155 kg |
| 20' container loading | 96 pcs | |
| 40' HQ container loading | 195 pcs | |
Sound figures are values listed in the model source. Compare the same load, measurement method, distance and environment; request the complete test conditions when they are not stated here. Fuel-consumption and runtime figures are values listed in the model source. Request the load point, fuel or tank basis and test conditions for a like-for-like comparison; actual consumption and operating time depend on the operating conditions.
Questions about DH11000E – DH12000E+
Short answers for comparing this configuration before quotation.
Send your requirementsWhich model should I choose?
DH11000E has 8 kW rated output; DH12000E+ has 9.5 kW. Send the equipment list and starting demand so we can check the complete load.
How does this pair differ from DH13000E–DH22000E?
DH11000E and DH12000E+ use 1100F and 1103F engines. DH13000E, DH15000E and DH22000E use 2V88, 2V92 and 2V95 engines, respectively.
Is ATS remote control available?
ATS remote control is optional. Include your site transfer arrangement so the required equipment and wiring can be confirmed.
