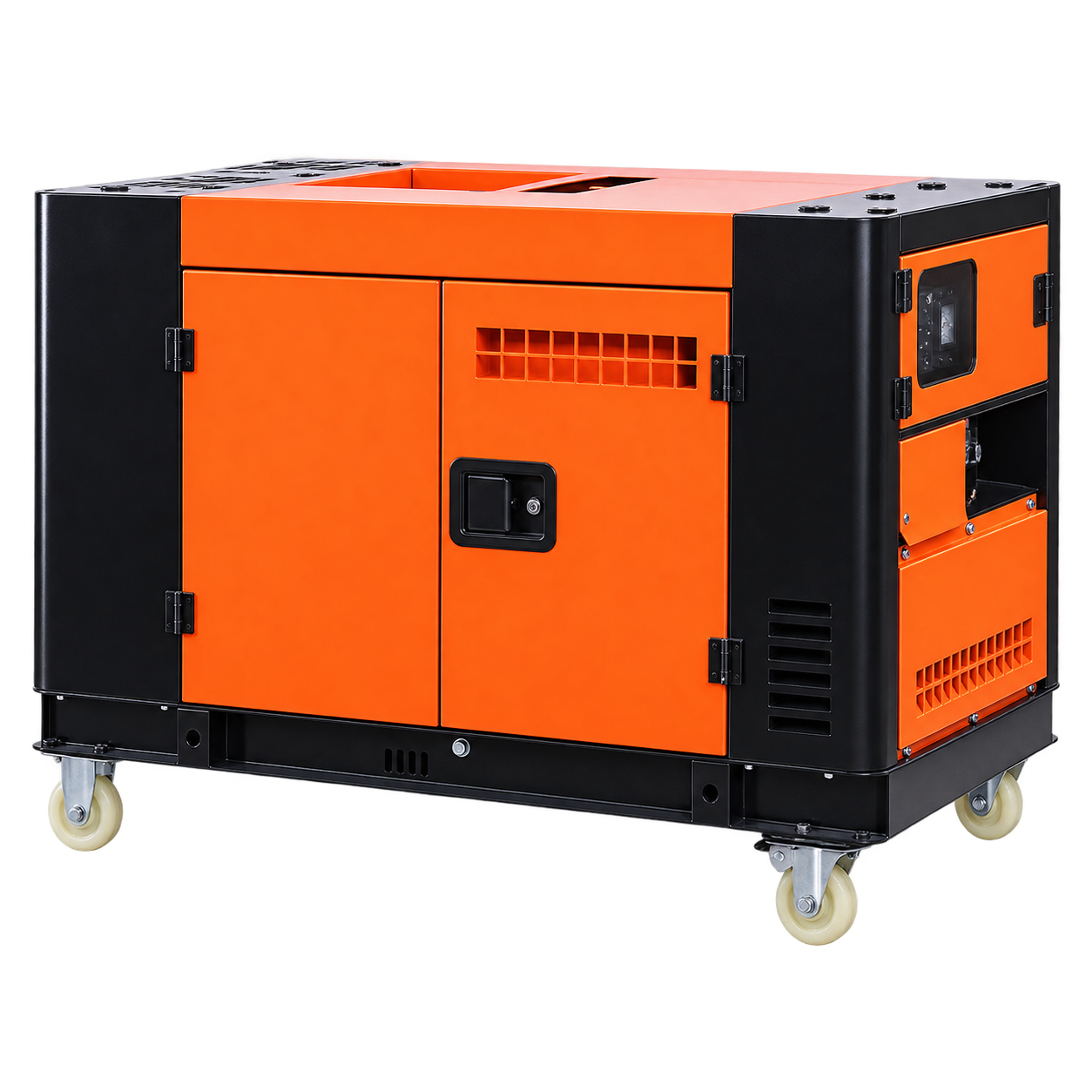

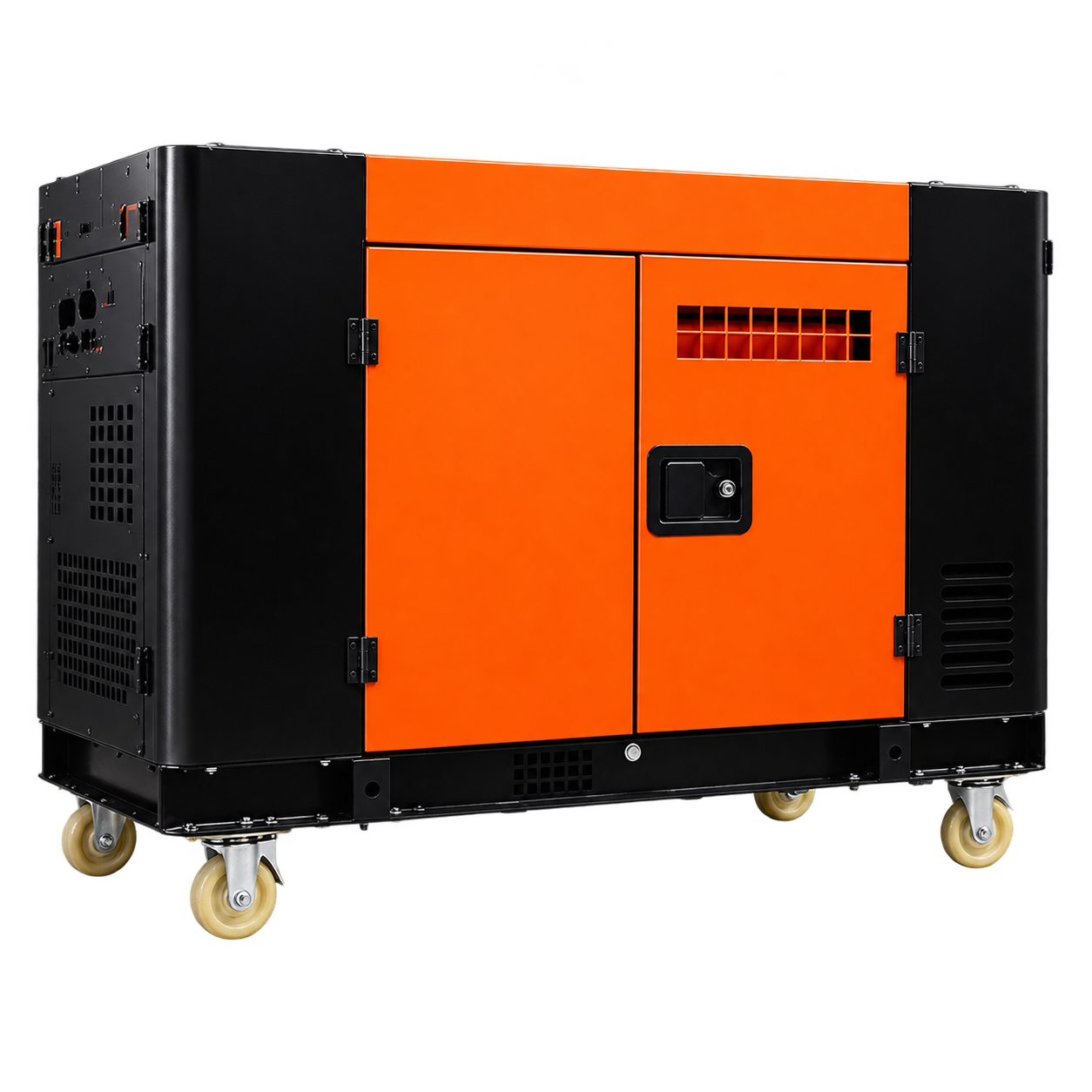

DH22000S enclosed diesel generator with a 2V95 engine, 30 L tank and electric start.
DH22000S lists paired 50/60 Hz configurations: 15/16 kW rated output and 15.5/16.5 kW maximum output. Select the required frequency together with voltage and phase, then review the standard equipment and optional wheels, digital meter and ATS arrangement.
Technical data for DH22000S from the BEAR product catalogue. Where two values are listed, the catalogue gives them alongside the 50 / 60 Hz frequency options; the quotation fixes frequency, phase and optional equipment for your order.
| Specification | DH22000S |
|---|---|
| Maximum output | 15.5 / 16.5 kW |
| Rated output | 15 / 16 kW |
| Rated AC voltage | 110 / 220 / 380 V |
| Phase | Single-phase or three-phase |
| Frequency | 50 / 60 Hz |
| Engine speed | 3000 rpm |
| Power factor | 1.0 |
| DC output | 12 V / 8.3 A |
| Alternator type | Self-excited, 2-pole, single alternator |
| Starting system | Electric start |
| Noise level (dB at 7 m) | 80–85 dB |
| Fuel tank capacity | 30 L |
| Continuous running time | 8 / 7.5 h |
| Engine model | 2V95 |
| Displacement | 1247 cc |
| Bore × stroke | 95 × 88 mm |
| Fuel consumption rate | 295 g/kWh |
| Fuel type | 0# or −10# light diesel oil |
| Lubrication oil volume | 4 L |
| Combustion system | Direct injection |
| Standard features | Voltmeter, AC output socket, AC circuit breaker, oil alert |
| Optional features | Four side wheels, digital meter, ATS remote control |
| Packing dimensions (L × W × H) | 935 × 675 × 975 mm |
| Net weight | 235 kg |
| Gross weight | 240 kg |
| 20' container loading | 40 pcs |
| 40' HQ container loading | 82 pcs |
Values are taken from the DH22000S product documents.
Sound figures are values listed in the model source. Compare the same load, measurement method, distance and environment; request the complete test conditions when they are not stated here. Fuel-consumption and runtime figures are values listed in the model source. Request the load point, fuel or tank basis and test conditions for a like-for-like comparison; actual consumption and operating time depend on the operating conditions.

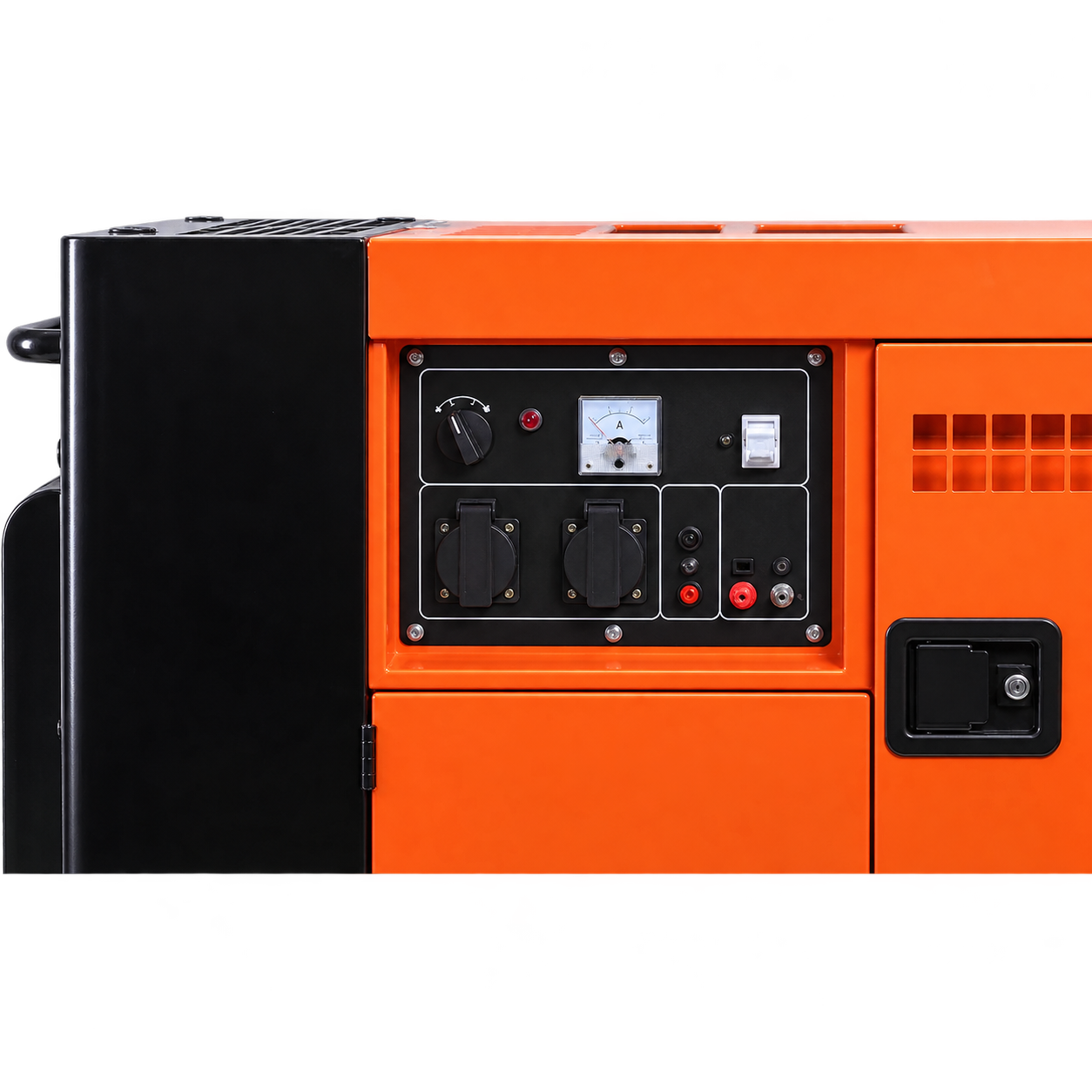

Use the close view to locate the area that needs an exact panel drawing and written electrical schedule before the order is confirmed.
Application ideas
These settings help organize the load, duty cycle and site information needed for a matched quotation.
Use this context to prepare a load schedule and review outdoor placement, cable routing, weather protection and exhaust direction before configuration selection.
Use this context to discuss tool starting loads, duty cycle, site access and distribution arrangements before selecting the ordered configuration.
Operate generators outdoors only, direct exhaust away from people and buildings, and follow the final manual and applicable local safety rules.
Short answers for comparing this configuration before quotation.
Send your requirementsThe 50/60 Hz entries pair 15/16 kW rated output with 15.5/16.5 kW maximum output. Keep frequency and output together when comparing the selected electrical version.
The catalogue lists four side wheels, a digital meter and ATS remote control as optional. State the required items separately from the standard voltmeter, AC socket, AC circuit breaker and oil alert.
