H-X-5500 Inverter Gasoline Generator
Enclosed inverter gasoline generator with a 7 L tank and manual, electric or remote-control starting.
- Rated / peak
- 4.0 / 4.5 kW
- Output
- Single-phase · 50 Hz
- Starting
- Manual / electric / remote
- Size / weight
- 515 × 310 × 475 mm · 26 kg
Overview
H-X-5500 lists 4.0 kW rated output and 4.5 kW peak output for its single-phase 50 Hz configuration. The 515 × 310 × 475 mm body and 26 kg machine weight provide a second comparison with the load requirement when reviewing transport and storage.
Specifications
Core configuration values for H-X-5500.
| Specification | H-X-5500 |
|---|---|
| Peak power | 4.5 kW |
| Rated power | 4.0 kW |
| Phase number | Single-phase |
| Frequency | 50 Hz |
| Rotational speed | 3000 RPM |
| Startup method | Manual / electric / remote control |
| Fuel tank capacity | 7 L |
| Machine size | 515 × 310 × 475 mm |
| Machine weight | 26 kg |
Values are taken from the H-X-5500 product documents.
Compare models
H-X-5500 vs H-X-3000-A vs H-X-4000-A
Key differences from the published specifications. See the full specifications above and on each model page; the order configuration is confirmed in your quotation.
| Specification | H-X-5500 | H-X-3000-A | H-X-4000-A |
|---|---|---|---|
| Rated power | 4.0 kW | 2.8 kW | 3.5 kW |

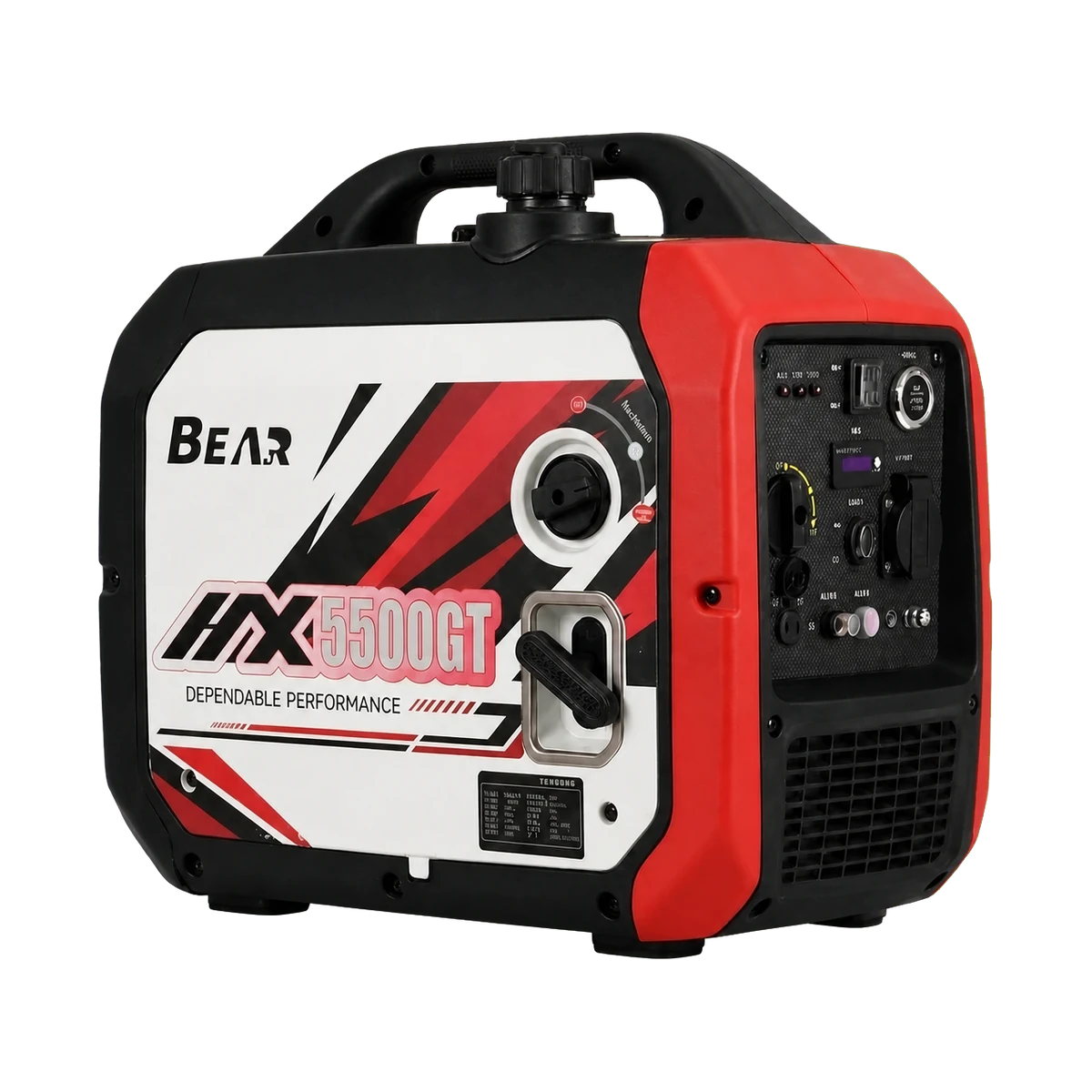

H-X-5500 walkaround and production context
Use the narrated H-X-5500 view to inspect visible connection positions and the wider production-line footage for BEAR enclosed-generator manufacturing context.
- Review the visible H-X-5500 control-side and connection positions
- Treat the production footage as manufacturing context rather than model or capacity proof
- Confirm voltage, socket standard and the exact order configuration in the quotation

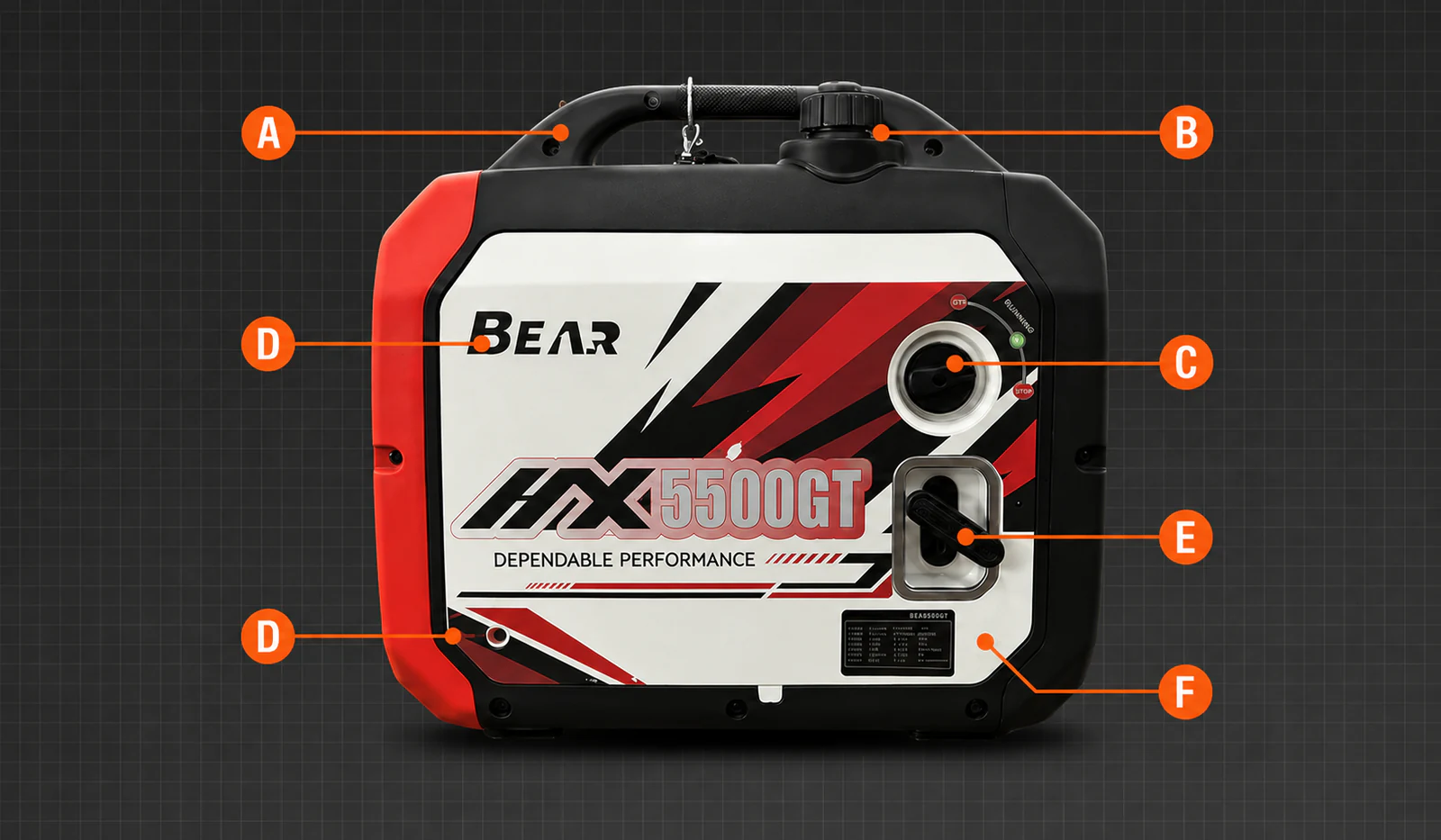

Enclosure and service positions
Use A-F to match each callout in the original structure image with its visible handling, access or identification position.
- A
- Integrated carrying handle
- B
- Top fuel-filler cap
- C
- Side rotary-control position
- D
- Side-cover branding and lower enclosure reference points
- E
- Recoil-starter handle
- F
- Technical data-plate position

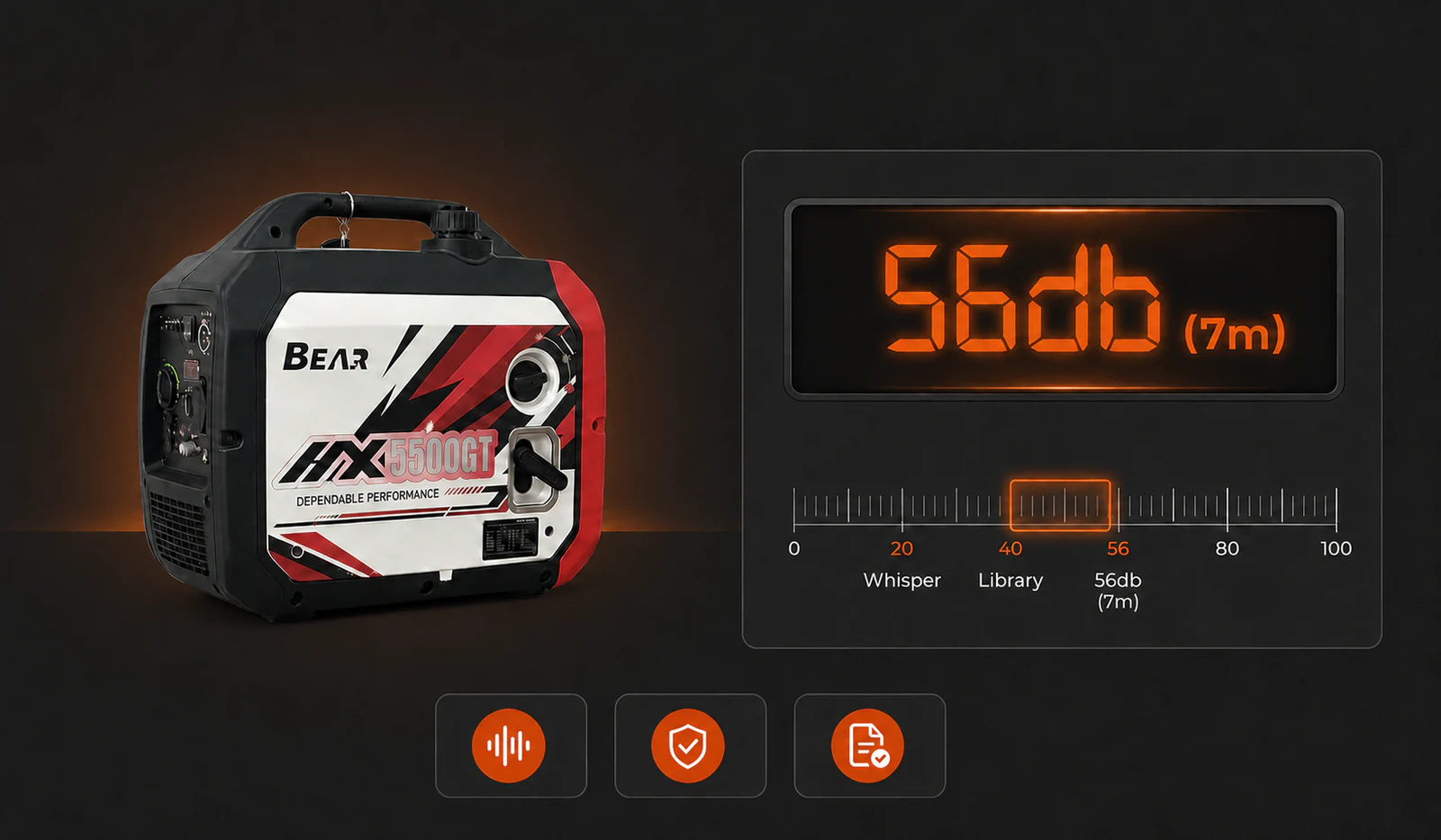

Enclosed format and handling
Use the enclosed body and integrated handling layout to review transport, outdoor placement and routine access requirements.
- Plan stable outdoor placement with clear ventilation
- Keep operating and service clearances available
- Confirm project-specific acoustic data when site limits apply

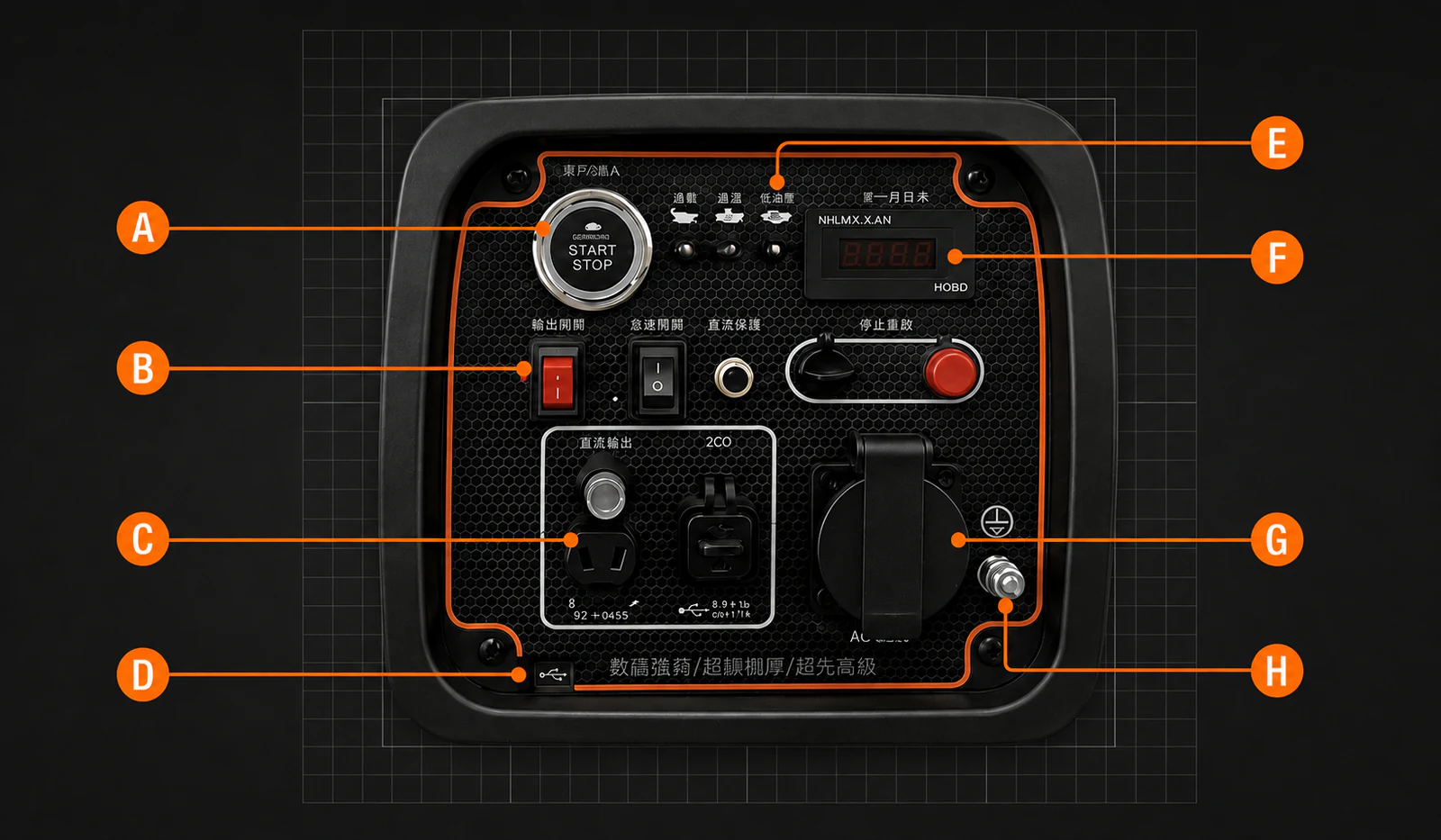

Control-panel configuration
Use A-H to match each callout in the original image with the corresponding control or connection position.
- A
- One-button start / stop control area
- B
- Main power-switch position
- C
- DC output socket position — rating stated in the quotation
- D
- USB-interface position — included per configuration
- E
- Operating-status indicator lights
- F
- Digital-display window
- G
- Covered AC output position — outlet type per destination market
- H
- Grounding-terminal position
Questions about H-X-5500
Short answers for comparing this configuration before quotation.
Send your requirementsHow does H-X-5500 differ from H-X-4000-A?
H-X-5500 lists 4.0 kW rated and 4.5 kW peak output at 26 kg. H-X-4000-A lists 3.5 kW rated and 4 kW peak at 22 kg. Both pages list a 7 L tank; compare output and machine dimensions separately.
Can I order from the model name alone?
Include the required voltage, outlet standard and starting arrangement with H-X-5500. The page lists single-phase 50 Hz; the quotation must identify the configuration intended for the destination market.
Buyer guides for this model
Check power, configuration and documents before requesting a quotation
Electric Start vs Remote Start vs ATS Auto Start: A Buyer's Guide
Read the guide →Buyer guideGenerator Maintenance Schedules and Consumables
Read the guide →Buyer guideHow to Specify a Generator Spare-Parts Kit for the First Order
Read the guide →Buyer guideGenerator Test Report Red Flags: A Buyer Triage Guide
Read the guide →For an accurate quotation
Three details to confirm
- Electrical setupDestination market, voltage and outlet standard
- Actual useConnected equipment, starting load and duty cycle
- Order scopeQuantity, packaging, branding and required documents
