H-X-4000-A Inverter Gasoline Generator
Compact inverter gasoline generator with manual, electric and remote-control starting configurations.
- Rated output
- 3.5 kW
- Peak output
- 4 kW
- Electrical setup
- Single-phase · 50 Hz
- Starting
- Manual / electric / remote
Overview
H-X-4000-A combines a 7 L fuel tank with a 510 × 310 × 500 mm body and 22 kg machine weight. Compare these dimensions with transport and storage limits, then select the starting arrangement and destination-market electrical configuration.
Specifications
Specifications for the H-X-4000-A configuration shown on this page.
| Specification | H-X-4000-A |
|---|---|
| Peak power | 4 kW |
| Rated power | 3.5 kW |
| Phase number | Single-phase |
| Frequency | 50 Hz |
| Rotational speed | 3000 RPM |
| Startup method | Manual / electric / remote control |
| Fuel tank capacity | 7 L |
| Machine size | 510 × 310 × 500 mm |
| Machine weight | 22 kg |
Values are taken from the H-X-4000-A product documents.
Compare models
H-X-4000-A vs H-X-3000-A vs H-X-5500
Key differences from the published specifications. See the full specifications above and on each model page; the order configuration is confirmed in your quotation.
| Specification | H-X-4000-A | H-X-3000-A | H-X-5500 |
|---|---|---|---|
| Rated power | 3.5 kW | 2.8 kW | 4.0 kW |
H-X-4000-A configuration videos
Review the user-mapped horizontal outdoor demonstration and the vertical Eric-narrated configuration clip for the visible enclosure, access positions and control area.
- Inspect the enclosure, carry handle, access positions and front control area
- Review the outdoor equipment sequences and the closer vertical configuration view
- Confirm operating instructions, outlets, connected loads and destination-market configuration for the quoted unit

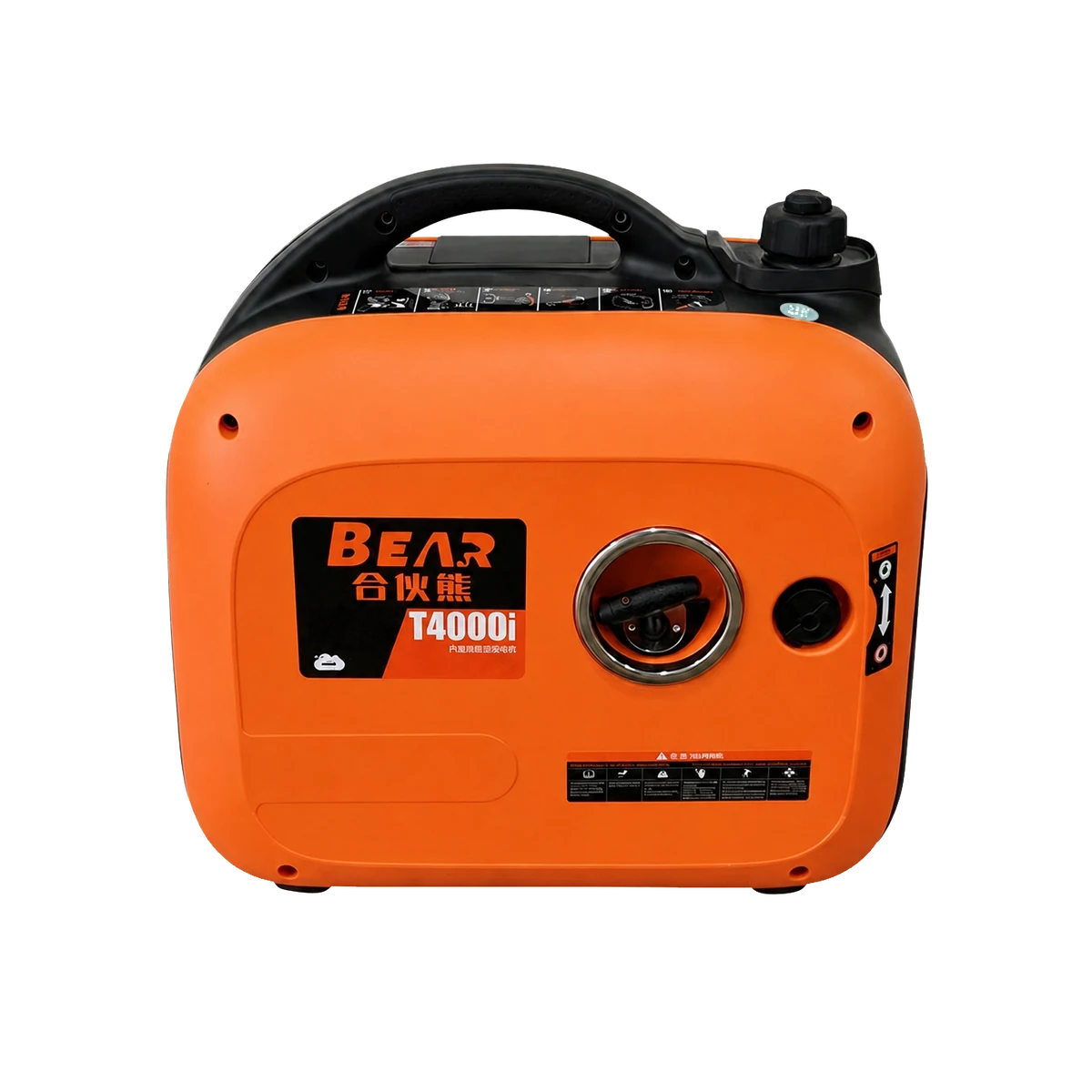

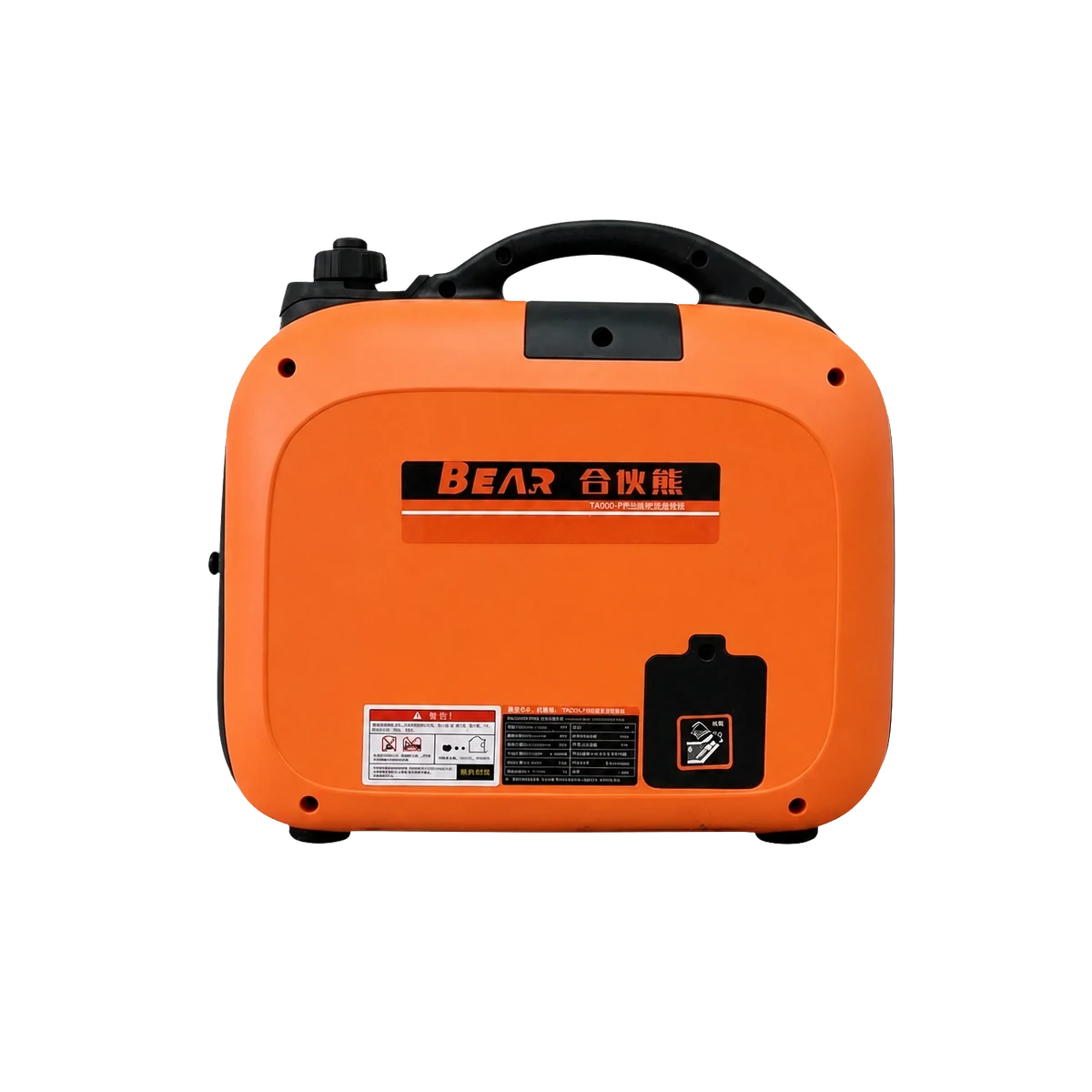

Visible structure positions
The A-F markers identify the main visible structure positions on the H-X-4000-A.
- A — Top carry handle.
- B — Fuel filler cap.
- C — Control-panel position.
- D — Product-label area.
- E — Recoil starter.
- F — Maintenance cover.

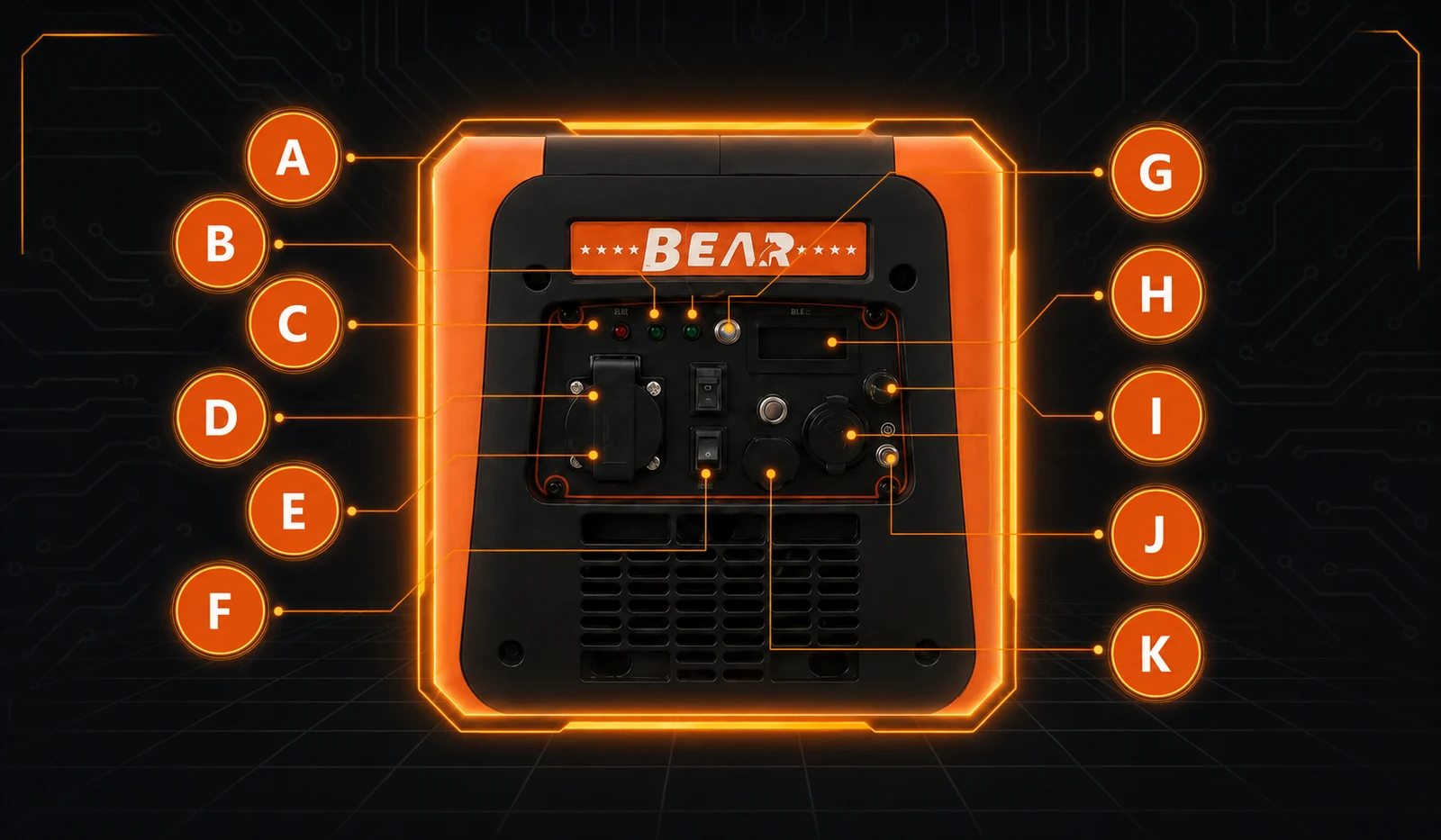

Control-panel reference functions
The A-K markers label the control-panel functions shown in the supplied panel graphic.
- A — Running status indicator.
- B — System alarm indicator.
- C — Overload warning indicator.
- D — Reset switch.
- E — AC output socket.
- F — Secondary reset switch.
- G — DC overload reset.
- H — Digital display.
- I — Choke control.
- J — USB port.
- K — DC output socket.
Application ideas
Residential, camping and RV contexts
Two visual concepts for discussing where this compact generator format may fit. Match the actual load and destination-market configuration before ordering.
Application visuals are illustrative. Follow applicable outdoor placement, ventilation and safety requirements for the final configuration.
Questions about H-X-4000-A
Short answers for comparing this configuration before quotation.
Send your requirementsWhat distinguishes H-X-4000-A from H-X-5500?
The H-X-4000-A values on this page are 3.5 kW rated, 4 kW peak and 22 kg. H-X-5500 lists 4.0 kW rated, 4.5 kW peak and 26 kg. Compare the rated outputs with the same running and starting load list.
What needs to be specified with the starting arrangement?
Name the required manual, electric or remote-control arrangement in the inquiry, together with voltage, outlets and destination country. Check the supplied panel and starting equipment against the final quotation.
