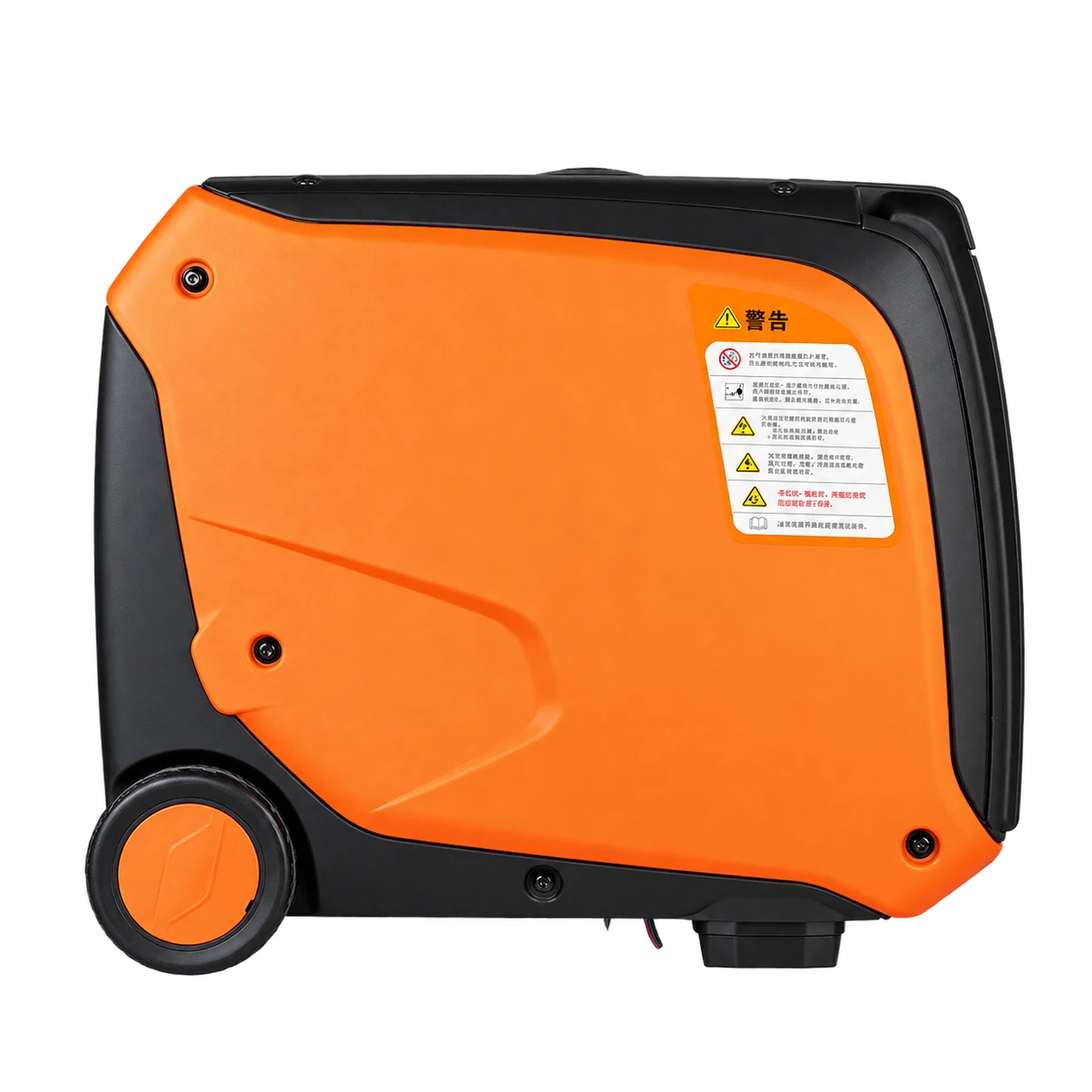

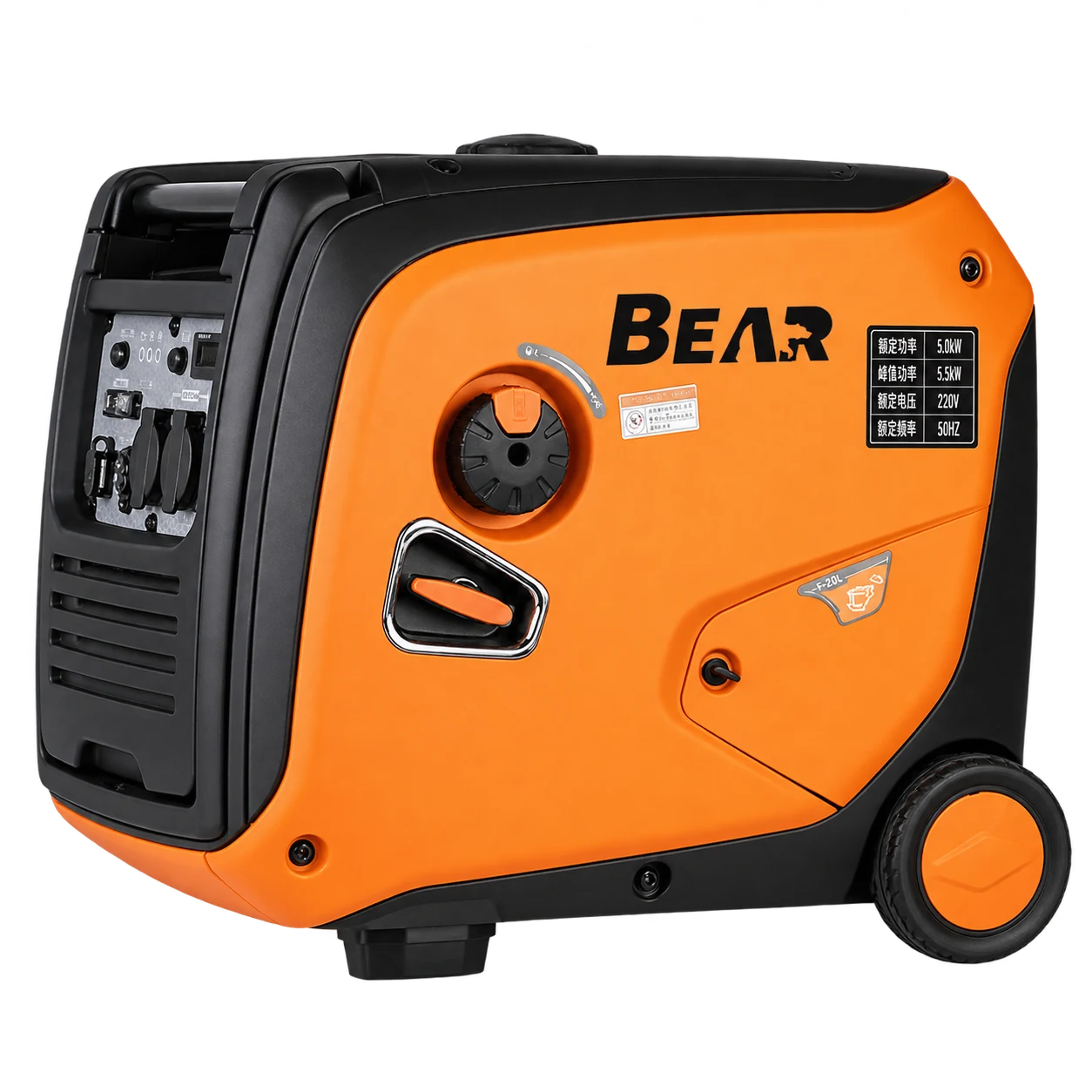

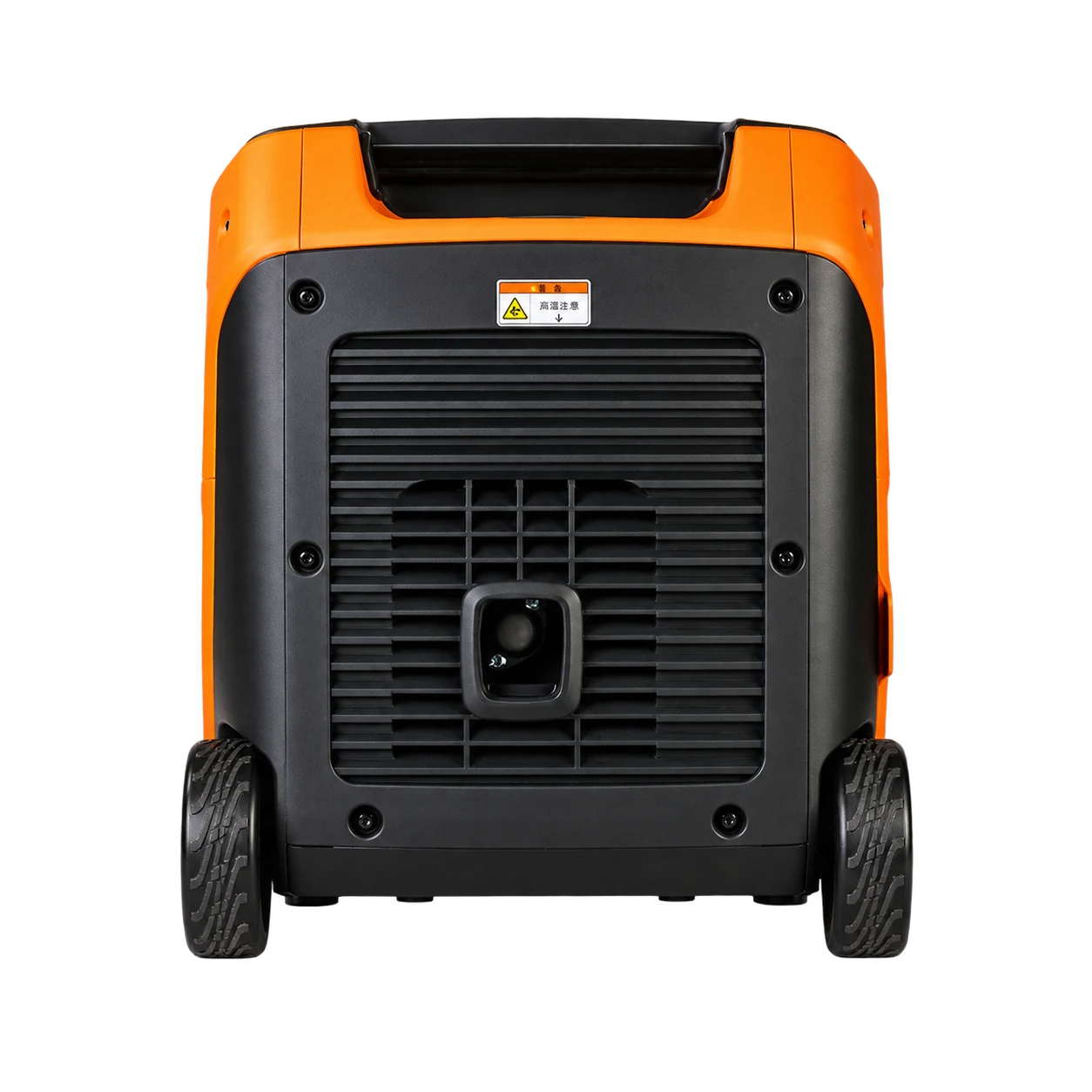

H4500IE Portable Inverter Generator
Enclosed gasoline inverter generator with a wheeled body.
- Rated output
- 3.5 kW
- Maximum output
- 4 kW
- Noise level (dB at 7 m)
- 50–60 dB
- THD
- ≤ 3%
Overview
H4500IE combines an enclosed body with wheels and an 11 L fuel tank. It has a VFT digital display, 5 V USB output and parallel connection support, with recoil or electric start options.
Specifications
| Model | H4500IE |
|---|---|
| Maximum output | 4 kW |
| Rated output | 3.5 kW |
| Rated AC voltage | 110 / 220 V |
| Rated current | 7.8 A |
| Phase | Single-phase |
| Frequency | 50 / 60 Hz |
| Engine speed | 3000 rpm |
| DC output | 12 V / 8.3 A |
| Alternator type | Self-excited, 2-pole, single alternator |
| Starting system | Recoil or electric start |
| Digital display | VFT |
| USB output | USB/5V |
| Parallel connection | Yes |
| THD | ≤ 3% |
| Noise level (dB at 7 m) | 50–60 dB |
| Fuel tank capacity | 11 L |
| Continuous running time | 7 h |
| Engine oil grade | SAE SJ 10W-30 |
| Engine type | Single-cylinder, 4-stroke, forced-air-cooled, OHV |
| Displacement | 225 cc |
| Fuel type | 92# gasoline |
| Lubrication oil volume | 1 L |
| Packing dimensions (L × W × H) | 650 × 495 × 605 mm |
| Net weight | 38.5 kg |
| Gross weight | 40 kg |
Sound figures are values listed in the model source. Compare the same load, measurement method, distance and environment; request the complete test conditions when they are not stated here. Fuel-consumption and runtime figures are values listed in the model source. Request the load point, fuel or tank basis and test conditions for a like-for-like comparison; actual consumption and operating time depend on the operating conditions.

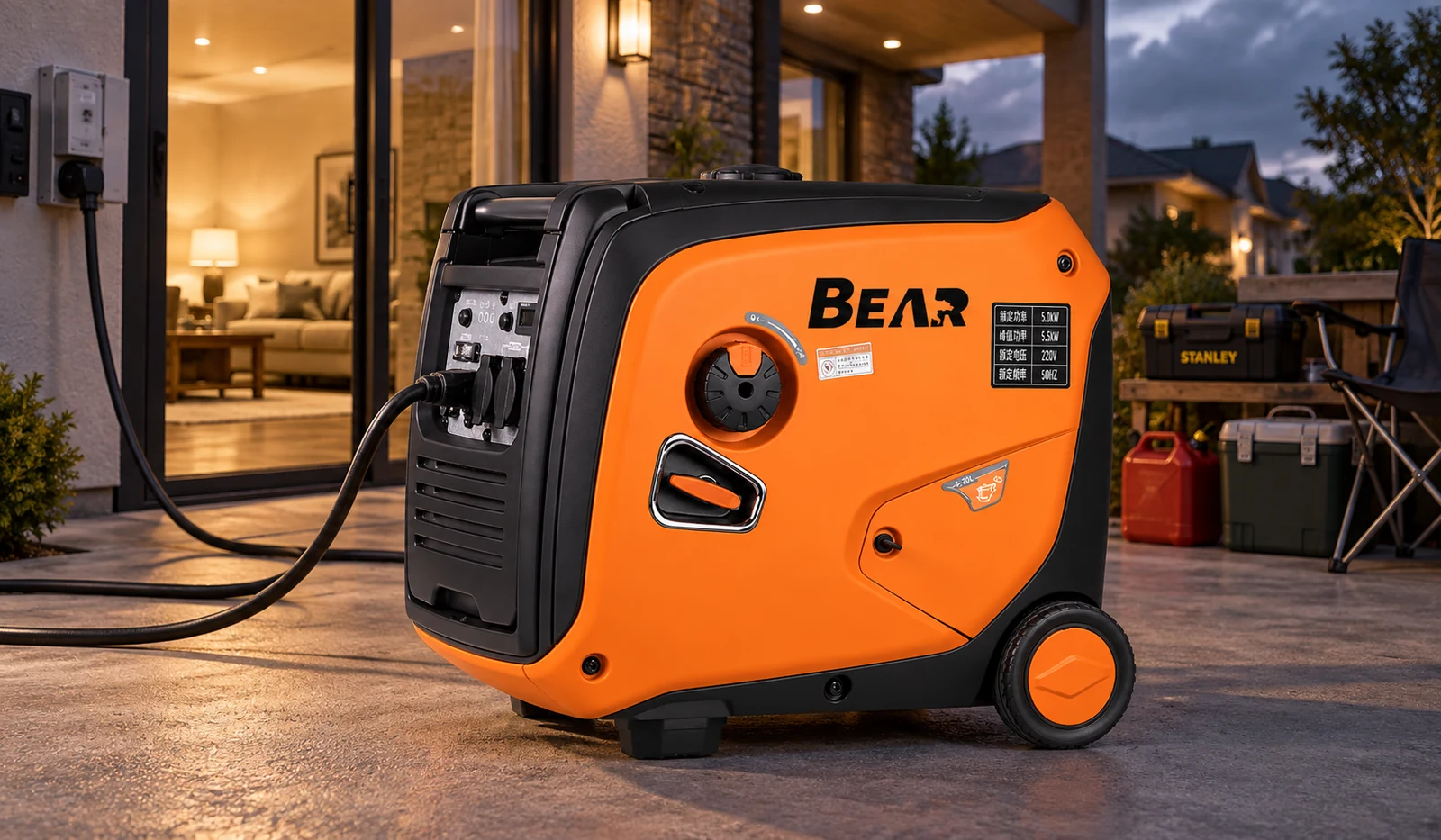

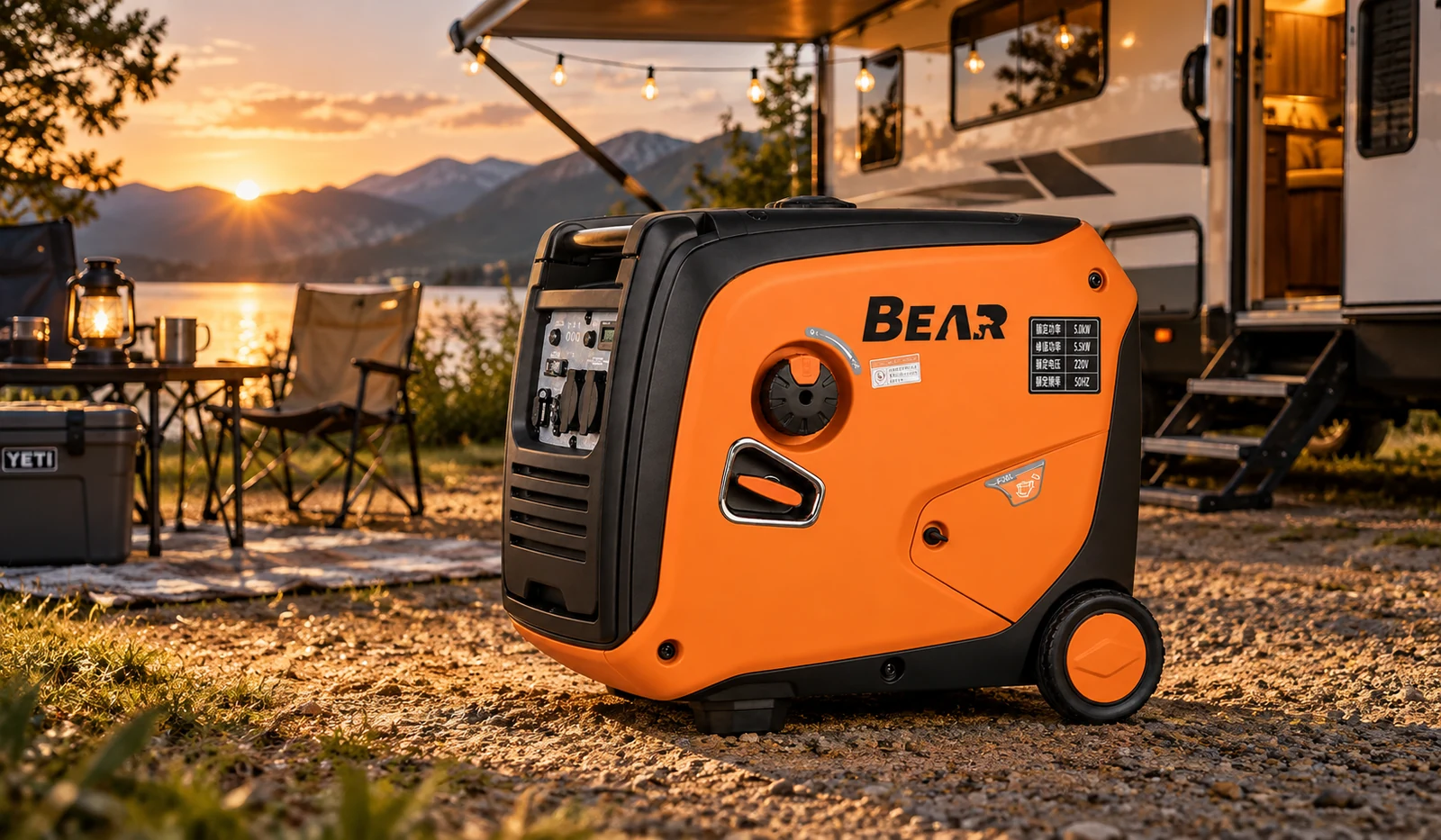

Application ideas
H4500IE application contexts
Explore common operating environments and share the connected equipment, duty cycle and site conditions with your inquiry.
Operate outdoors with clear ventilation, stable grounding, safe exhaust direction and required working clearances.
Questions about H4500IE
Short answers for comparing this configuration before quotation.
Send your requirementsHow does H4500IE compare with H3500IE?
H4500IE has a wheeled body, 3.5 kW rated output and an 11 L tank. H3500IE is a compact handheld unit with 3.2 kW rated output and a 6 L tank.
Can I connect two generators in parallel?
Parallel connection is supported. Specify the paired models and combined load so the compatible kit and outlet configuration can be confirmed.
Can I choose the starting system?
Recoil and electric start options are available. Specify your preferred starting system in the inquiry.
Buyer guides for this model
Check power, configuration and documents before requesting a quotation
For an accurate quotation
Three details to confirm
- Electrical setupDestination market, voltage, frequency, phase and outlet standard
- Actual useConnected equipment, running load, starting demand and duty cycle
- Order scopeQuantity, packaging, branding and required documents
