Blue Enclosed Generator
Blue generator cabinet with four caster wheels, a recessed end panel and a hinged side service door.
- Format
- Enclosed cabinet
- Mobility
- Caster-wheel base
- Controls
- Recessed end panel
- Access
- Hinged side door
Overview
The recessed control area and separate side door are the main layout features to compare on this configuration. Use the four-wheel view to discuss movement and storage, and request the exact unit dimensions and electrical specification for the intended site.
Specifications
Visible cabinet and access configuration
| Specification | Blue Enclosed Generator |
|---|---|
| Product format | Enclosed cabinet |
| Mobility | Four caster wheels visible |
| Control position | Recessed end panel |
| Service access | Hinged side cabinet door |
| Ventilation layout | Cabinet-side ventilation openings |
Values describe the visible configuration of the Blue Enclosed Generator unit shown on this page.
Cabinet and access layout

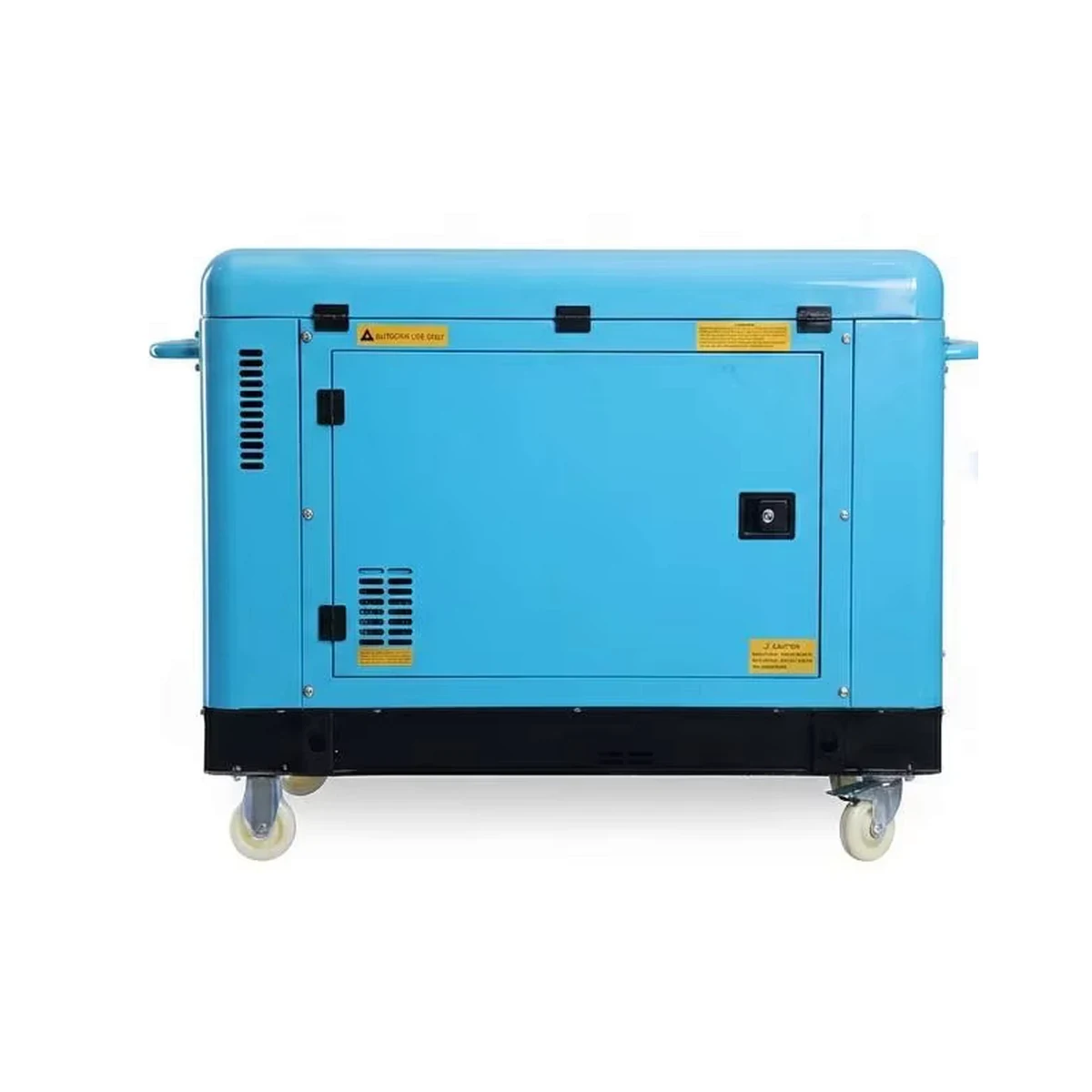

The side view shows the enclosed body, access door, ventilation openings and wheeled base used for configuration review.
- Large hinged side door for access to the enclosed assembly
- Ventilation openings distributed across the cabinet panels
- Caster-wheel base for positioning during delivery and site setup
Visible structure and mobility points
Follow each original callout to review the visible handling, access and cabinet positions. The source image uses B twice for two different locations.
- A
- End-mounted push-handle position
- B
- Top cap position
- B
- Recessed control-and-output area
- C
- Lower end-panel ventilation openings
- D
- Upper access-door latch position
- E
- Side access-door latch position
- F
- Caster-wheel position
Control-panel layout review

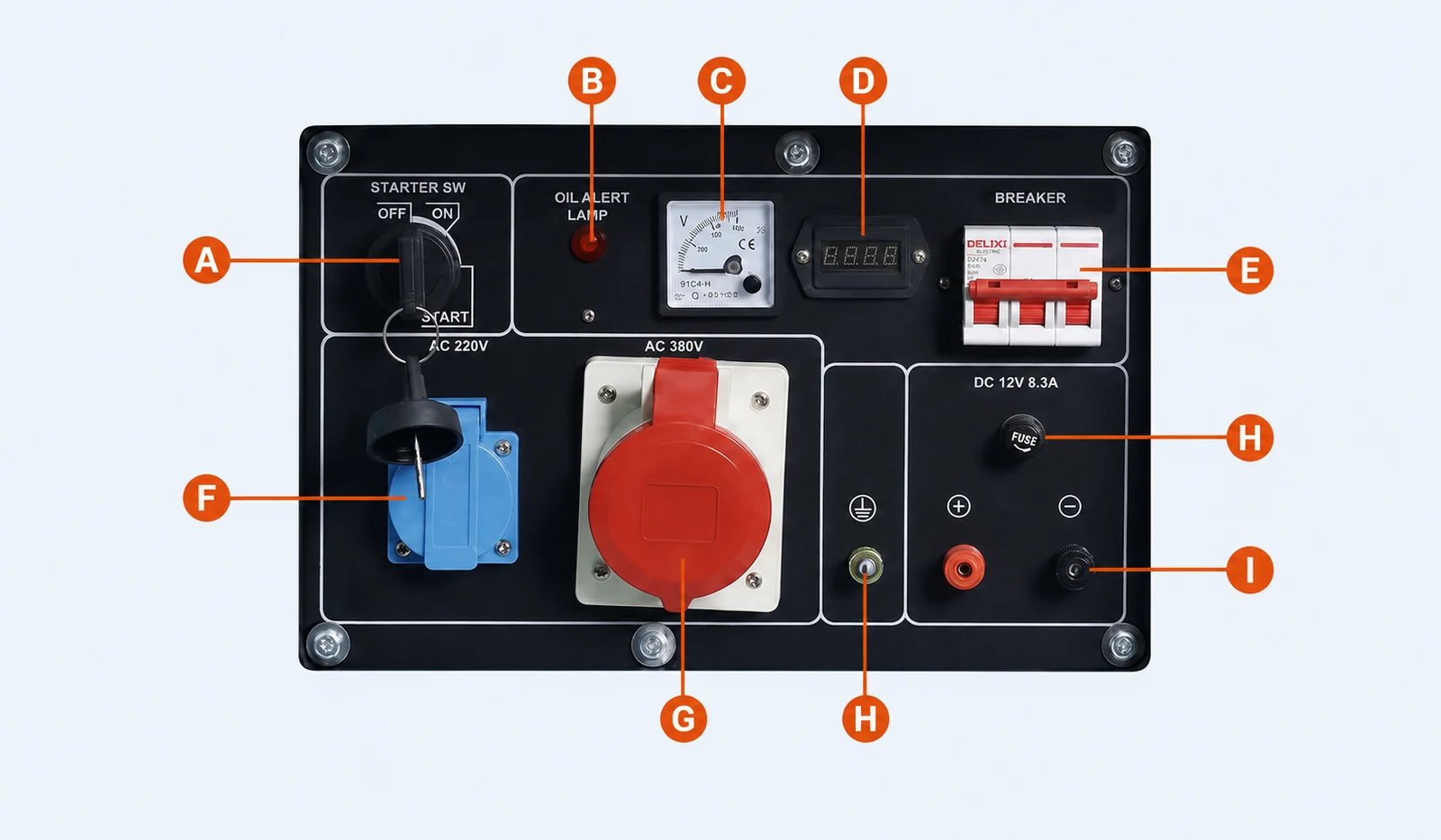

Follow each original callout to review the visible control and connection positions. The source image uses H twice for two different locations.
- A
- Starter-switch position
- B
- Oil-alert indicator-lamp position
- C
- Analog meter position
- D
- Digital display position
- E
- Breaker position
- F
- Smaller covered output position
- G
- Larger covered output position
- H
- Fuse-holder position
- H
- Grounding-terminal position
- I
- Negative DC-terminal position
Application ideas

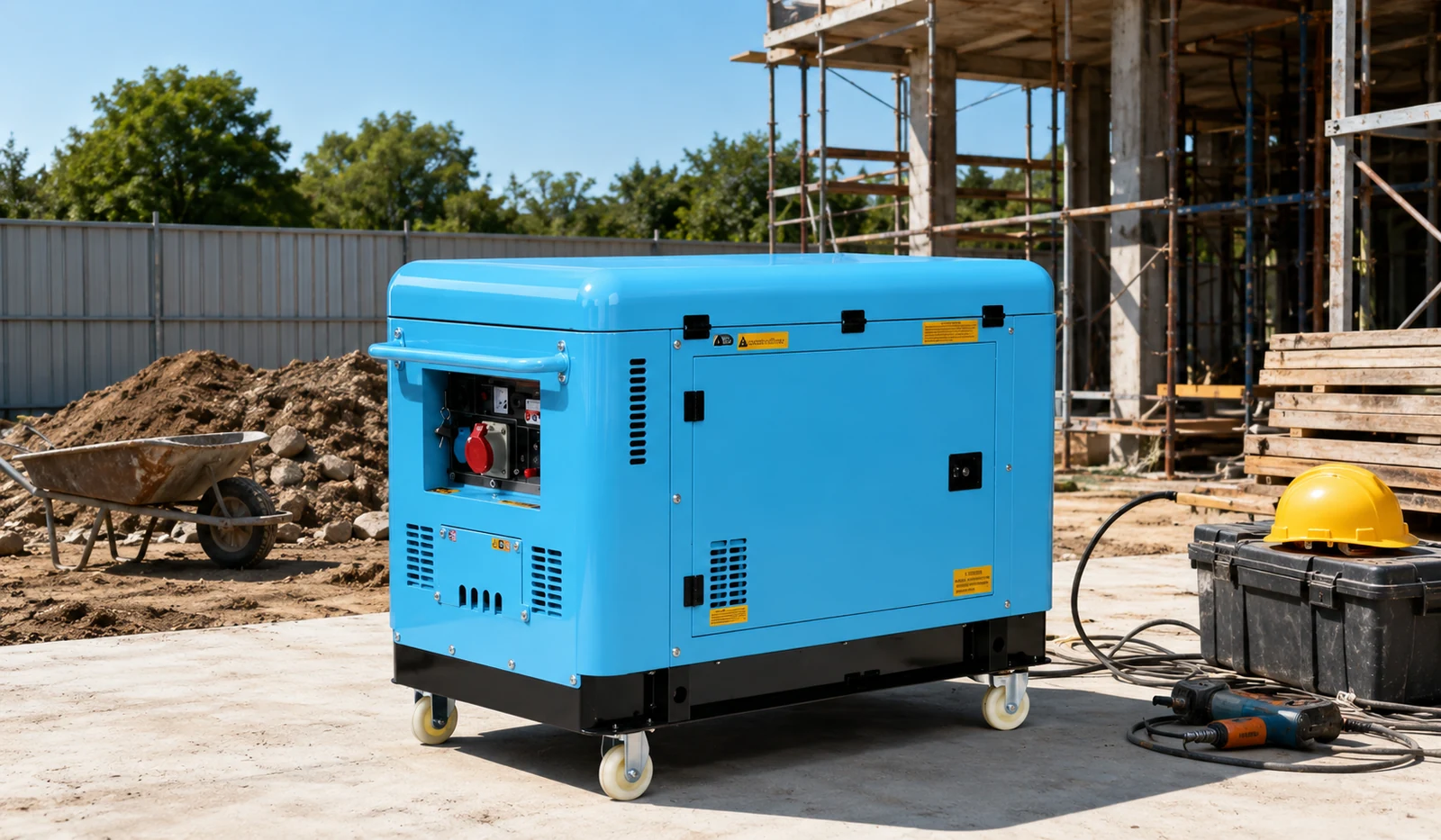

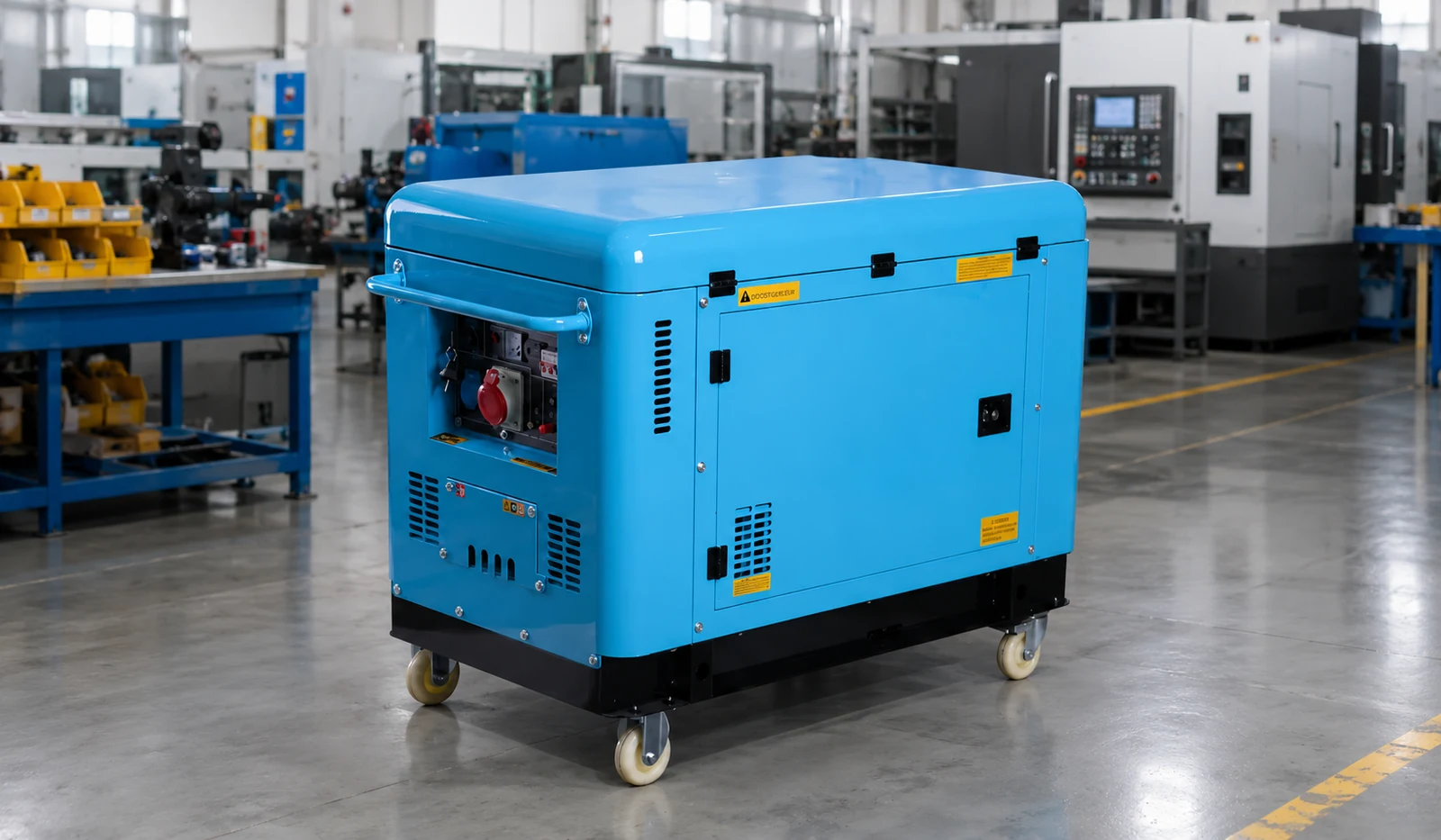

Workshop and construction-site planning contexts
Use these settings to discuss connected loads, duty cycle, access, cable routing, ventilation, weather protection and the electrical configuration required for the destination market.
Operate engine-driven generators outdoors only in a fully open, ventilated position. Direct exhaust away from people, buildings, doors, windows and air intakes, and follow the approved manual and local requirements for the ordered configuration.
Questions about Blue Enclosed Generator
Short answers for comparing this configuration before quotation.
Send your requirementsWhich parts of the cabinet layout should the order identify?
Identify the recessed end panel, hinged side door and four-caster arrangement. Ask for a drawing of the quoted unit showing overall dimensions and service access.
What should I send when the cabinet must fit a fixed space?
Send the available footprint, access route, door-opening restrictions and intended operating location. Request the required ventilation and service clearances with the selected configuration.
Buyer guides for this model
Check power, configuration and documents before requesting a quotation
For an accurate quotation
Three details to confirm
- Electrical setupDestination market, voltage and outlet standard
- Actual useConnected equipment, starting load and duty cycle
- Order scopeQuantity, packaging, branding and required documents
