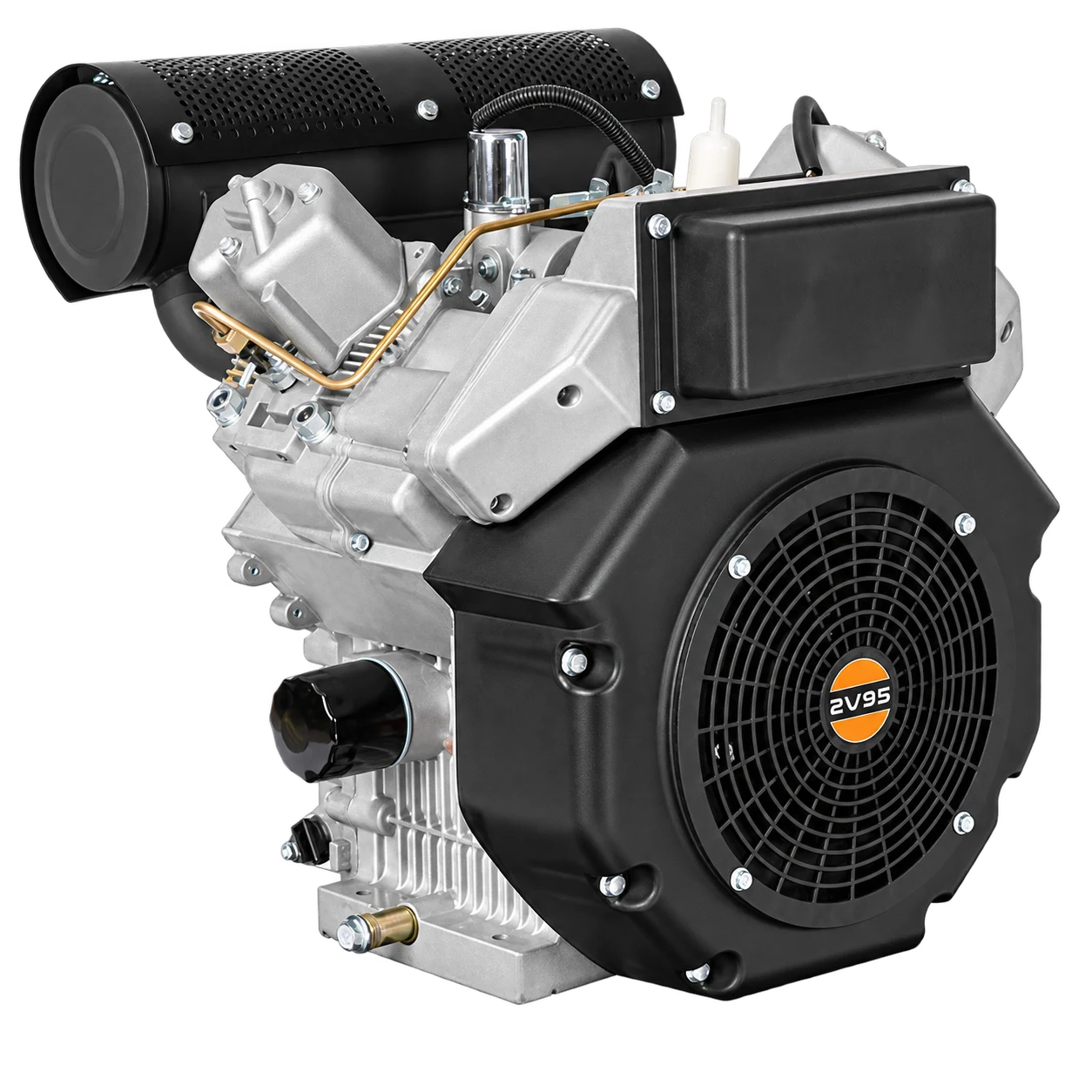

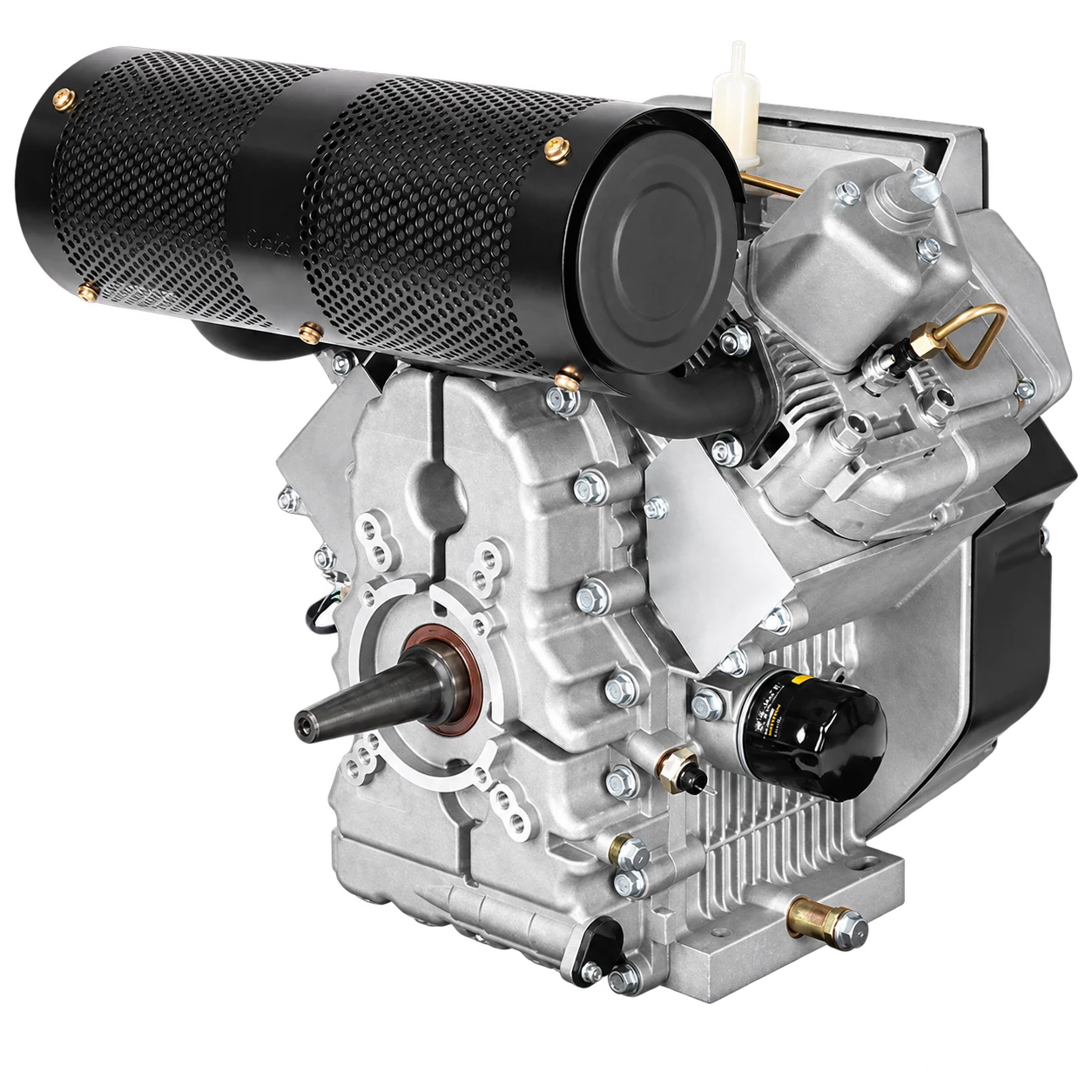

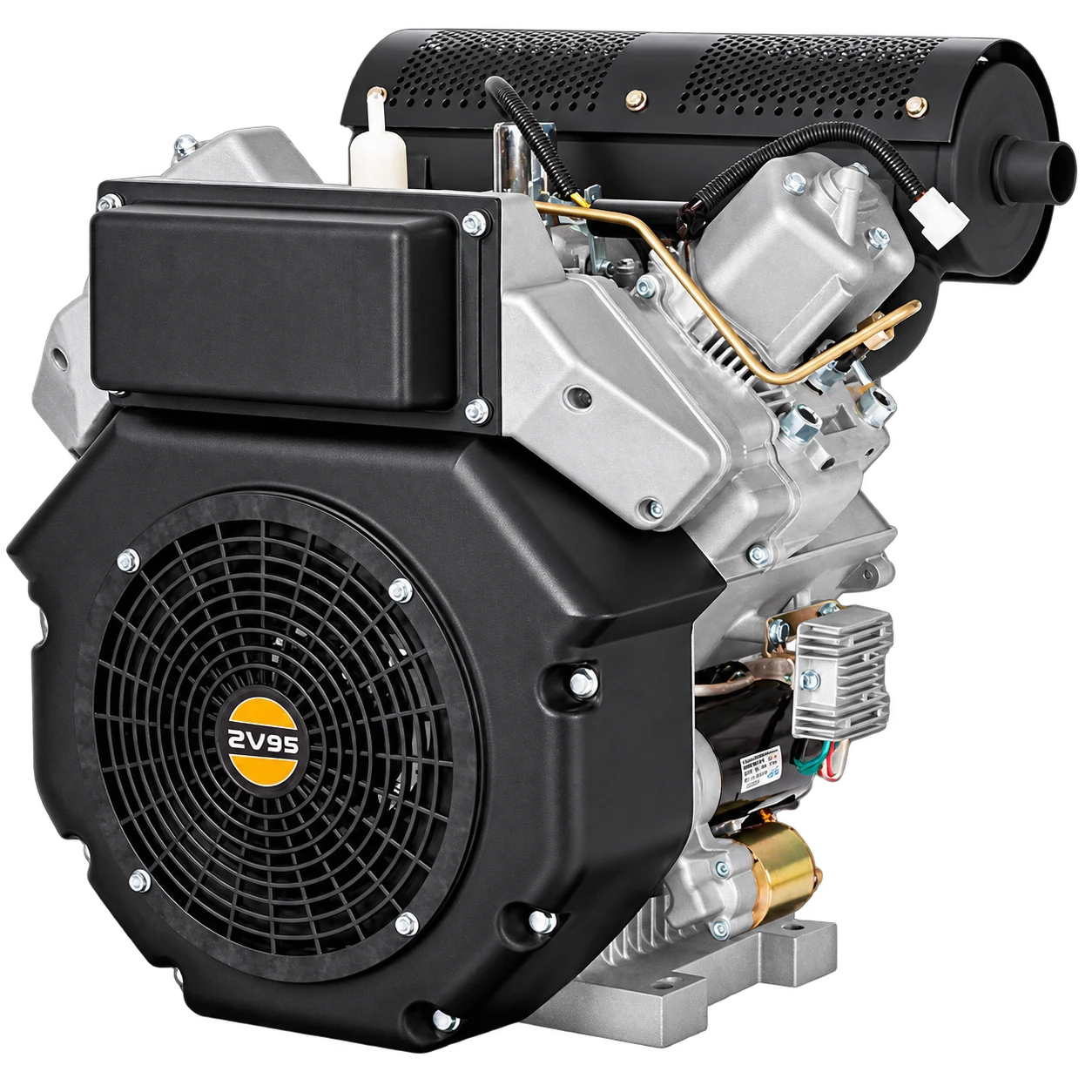

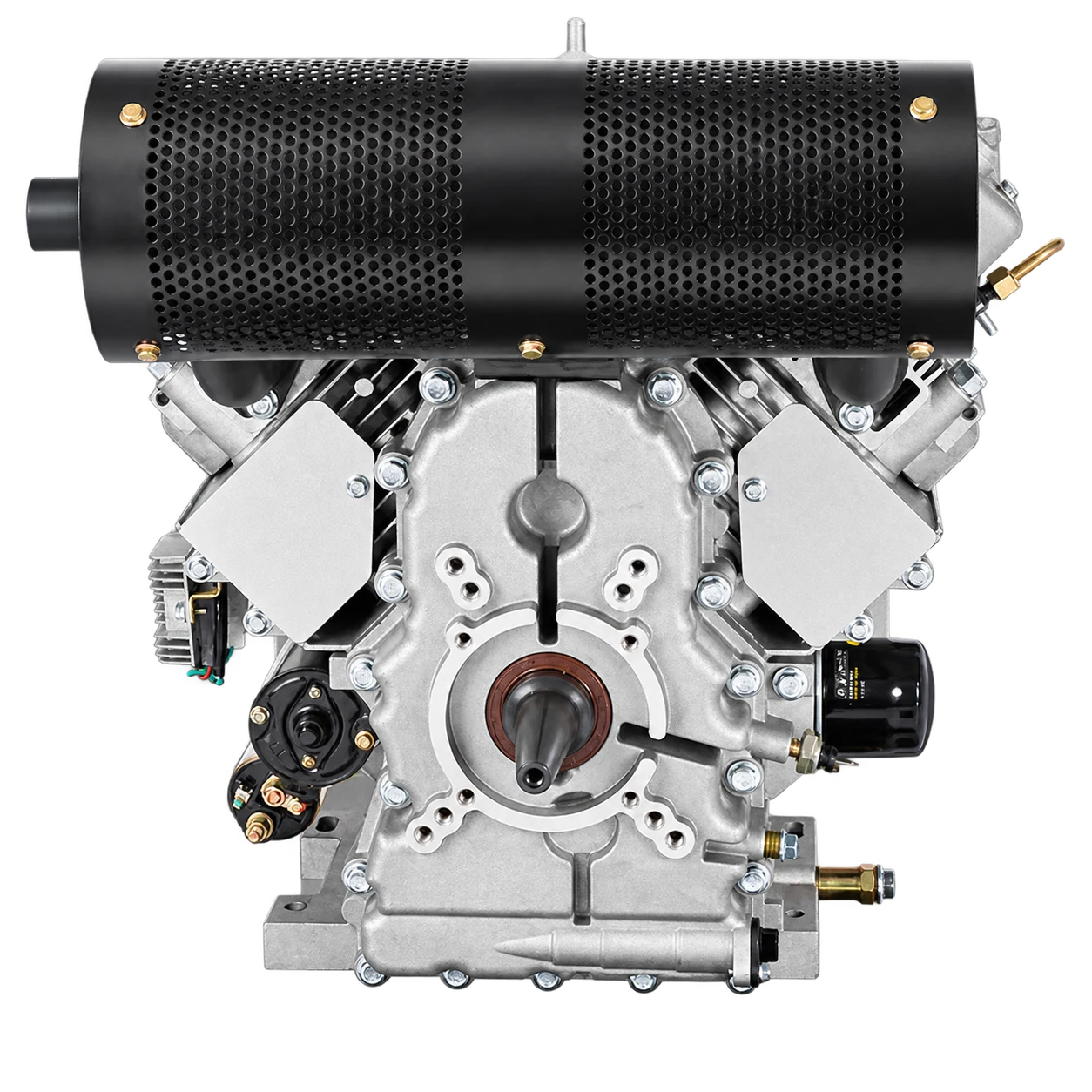

2V88F – 2V95FF V-Twin Diesel Engines
Three V-twin air-cooled diesel engines with direct injection and electric start.
- Models
- 2V88F(E), 2V92F(E), 2V95FF(E) (3 models)
- Rated output at 3000 rpm
- 13.8 – 18 kW
- Maximum output at 3600 rpm
- 20.2 – 25.6 kW
- Displacement
- 912 – 1247 cc
- Starting system
- Electric start
Overview
The 2V88F, 2V92F and 2V95FF are four-stroke V-twin diesel engines with air cooling and electric start. Choose the rated shaft output for your operating speed and specify the mounting and fuel supply arrangement.
Specifications
| Model | 2V88F(E) | 2V92F(E) | 2V95FF(E) |
|---|---|---|---|
| Engine type | V-twin, 4-stroke, air-cooled diesel engine | ||
| Combustion system | Direct injection | ||
| Bore × stroke | 88 × 75 mm | 92 × 75 mm | 95 × 75 mm |
| Displacement | 912 cc | 997 cc | 1247 cc |
| Compression ratio | 20:1 | ||
| Engine speed | 3000 / 3600 rpm | ||
| Maximum output at 3000 rpm | 18.6 kW | 20.0 kW | 24.3 kW |
| Maximum output at 3600 rpm | 20.2 kW | 21.8 kW | 25.6 kW |
| Rated output at 3000 rpm | 13.8 kW | 14.8 kW | 18.0 kW |
| Rated output at 3600 rpm | 14.8 kW | 16.0 kW | 19.0 kW |
| Starting system | Electric start | ||
| Fuel consumption rate at 3000 rpm | 250 g/kWh | ||
| Fuel consumption rate at 3600 rpm | 260 g/kWh | ||
| Lubrication oil volume | 3 L | 3.8 L | |
| Engine oil grade | SAE 10W-30, CD grade or above | ||
| Fuel type | 0# or −10# light diesel oil | ||
| Packing dimensions (L × W × H) | 504 × 546 × 530 mm | 530 × 580 × 530 mm | |
| Gross weight | 68 kg | 74 kg | 78 kg |
Engine outputs are mechanical shaft power at the stated speed. Compare the 3000 rpm and 3600 rpm ratings separately.
Fuel-consumption and runtime figures are values listed in the model source. Request the load point, fuel or tank basis and test conditions for a like-for-like comparison; actual consumption and operating time depend on the operating conditions.

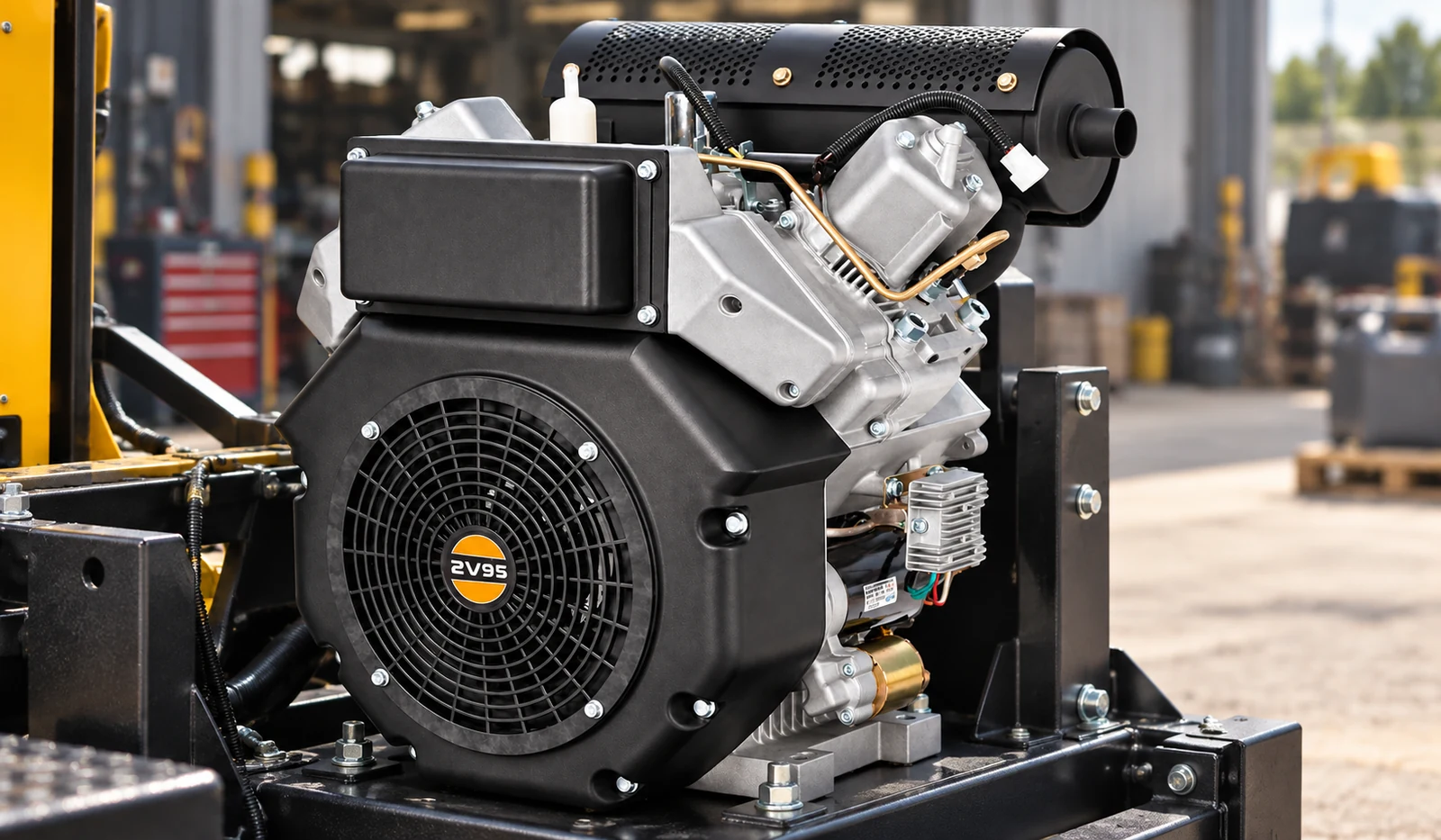

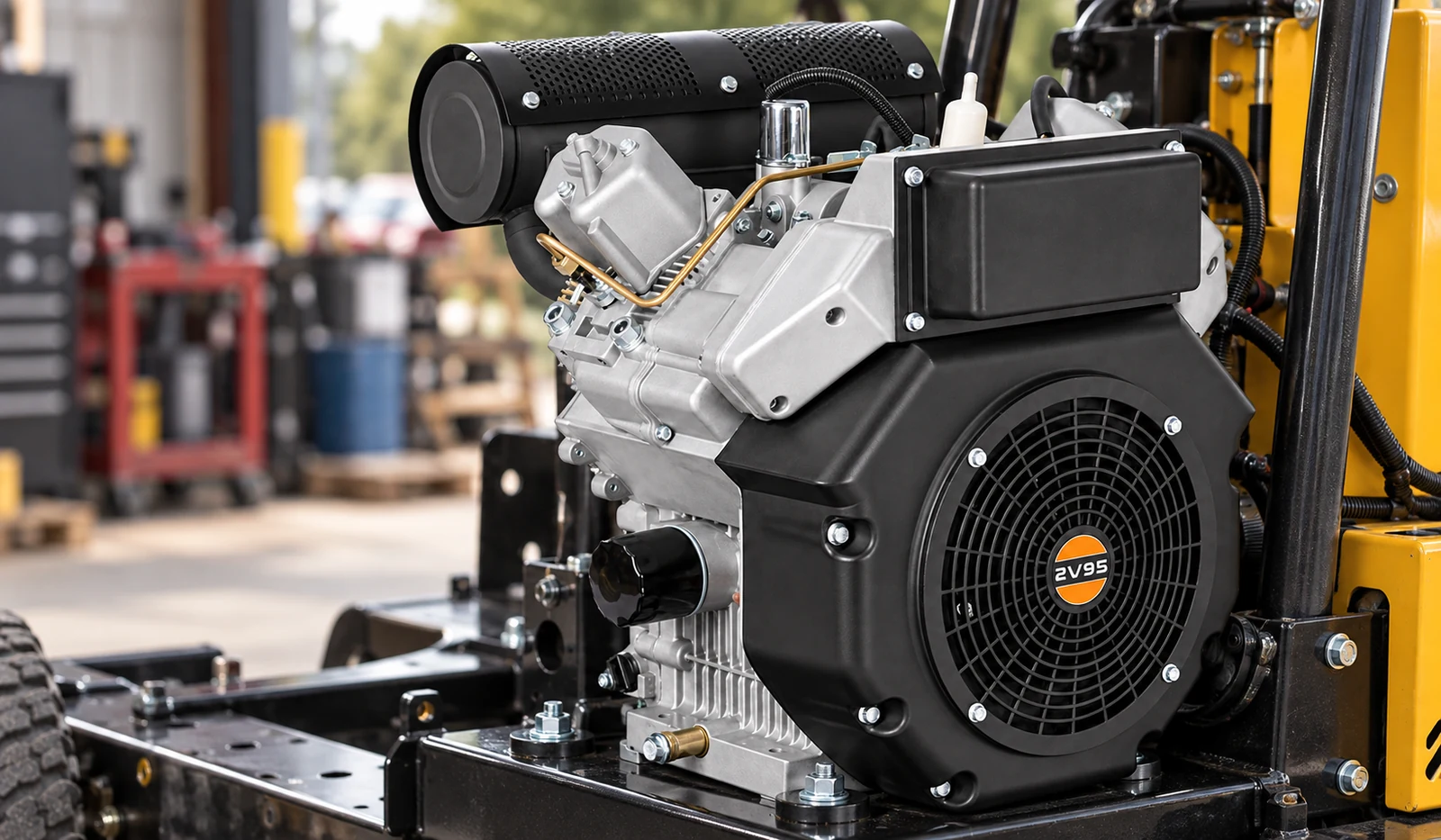

Application ideas
2V88F – 2V95FF application contexts
Explore common operating environments and share the connected equipment, duty cycle and site conditions with your inquiry.
Operate outdoors with clear ventilation, stable grounding, safe exhaust direction and required working clearances.
Questions about 2V88F – 2V95FF
Short answers for comparing this configuration before quotation.
Send your requirementsWhich model covers my required shaft power?
At 3000 rpm, rated output is 13.8, 14.8 and 18.0 kW for 2V88F, 2V92F and 2V95FF; at 3600 rpm, it is 14.8, 16.0 and 19.0 kW. Send the driven load for selection.
What fuel supply arrangement should I specify?
Tell us whether the installation requires an engine-mounted tank or a fuel feed from your machine. The supplied arrangement is confirmed in the quotation.
Which oil grade is specified?
SAE 10W-30, CD grade or above.
For an accurate quotation
Three details to confirm
- Driven machineWhat the engine drives, its absorbed power and its speed
- CouplingCrankshaft or camshaft take-off, shaft end and mounting interface
- Order scopeStarting system, quantity, packaging and required documents
